Rexroth Indramat BTV04 Operator Terminal

Description

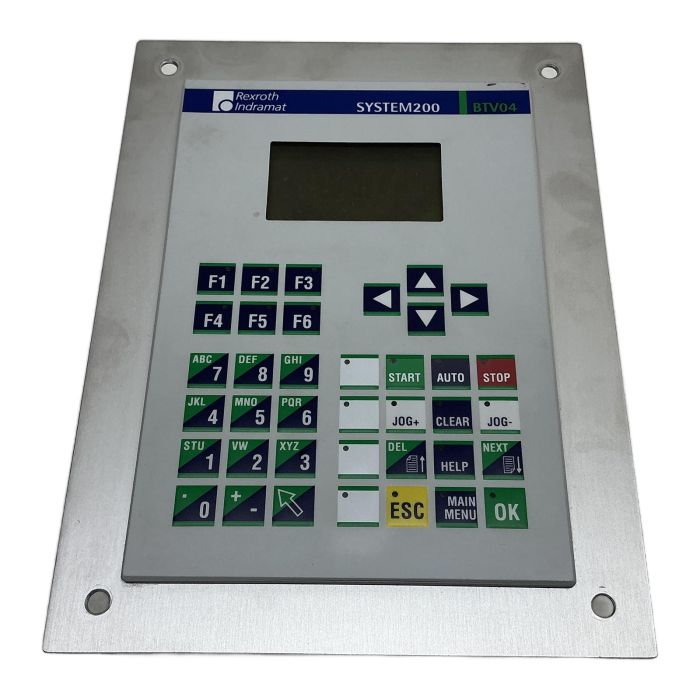

The Rexroth Indramat BTV04.2GN-FW, with part number R911282182, is a durable HMI operator panel designed for the SYSTEM 200 automation platform. This terminal provides operators with a clear interface for machine control and process monitoring through its monochrome display and tactile keypad. It is a reliable and essential component for maintaining legacy systems that rely on the Indramat architecture.

Specifications

• Manufacturer: Rexroth Indramat
• Model: BTV04.2GN-FW
• Part Number: R911282182
• Power Supply: 24V DC
• Communication Ports: RS-232, RS-485
• Display Type: Monochrome LCD
• Keypad: Numeric, Function, and Control Keys

Label Info

• BTV04.2GN-FW, R911282182, SN: 281341-02278
• Associated Firmware: FWA-BTV04*-ELC-01VRS-MS, R911285685, SN: 285685-02273

Application

This operator terminal is specifically used in conjunction with Rexroth Indramat SYSTEM 200 controllers, commonly found in applications such as CNC machinery, printing presses, and packaging lines from its era.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned HMI panel saves an estimated 60 kg of CO2 compared to producing a new one. This is equivalent to charging a smartphone over 7,200 times.

Availability

This item is an obsolete part but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this BTV04.2GN-FW compatible with any controller, or only specific Rexroth Indramat systems?

This HMI is specifically designed for the Rexroth Indramat SYSTEM 200 and communicates with its associated controllers, like the PPC series. It is not a universal HMI and cannot be used with other brands or modern systems without significant custom integration, which is not recommended.

The label indicates the hardware is associated with firmware R911285685. However, as a used part, the currently installed firmware or its configuration might differ. It is assumed to have a functional firmware installation, but project-specific programming will be required by the end-user.

The default communication parameters (baud rate, parity, data bits) are set within the project configuration loaded from the main system controller (e.g., PPC). There are no physical DIP switches on the unit to set these. You must ensure your system's configuration matches the expected settings for the HMI.
