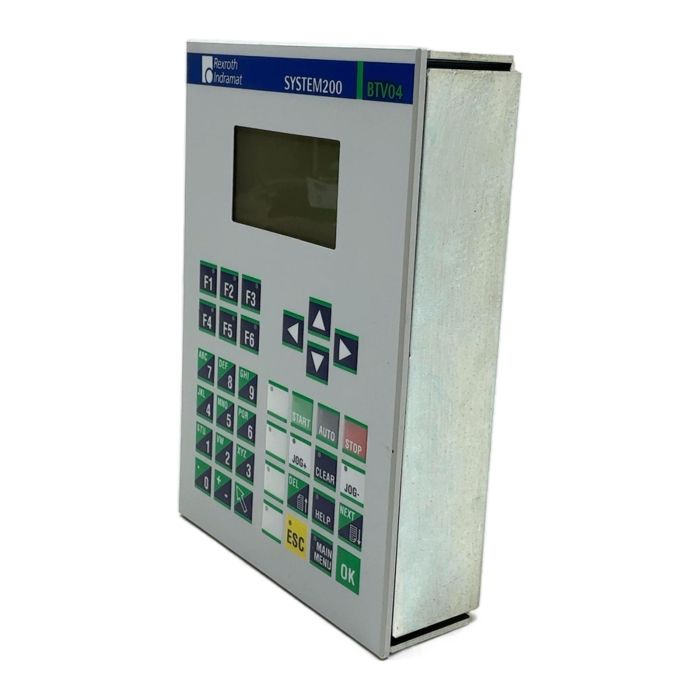

Rexroth Indramat BTV04.2GN-FW Operator Terminal

Description

The Rexroth Indramat BTV04.2GN-FW is a robust operator terminal from the SYSTEM200 series. Designed for industrial environments, this HMI provides a reliable interface for machine control and process visualization. It features a clear monochrome display, dedicated function keys, and a numeric keypad, ensuring efficient operation. This unit is an essential spare part for maintaining machinery equipped with the legacy Indramat control systems.

Specifications

• Manufacturer: Rexroth Indramat
• Model: BTV04.2GN-FW
• Part Number: 282182
• Series: SYSTEM200
• Supply Voltage: 24V DC
• Communication Ports: RS-232, RS-485
• Display: Monochrome LCD
• Control Interface: Keypad with F-keys and numeric pad

Label Info

• BTU04.2GN-FW, PN: 282182, SN: 281341-01389
• FWA-BTV04*-ELC-01URS-MS, PN: 285685, SN: 285685-01390

Application

This operator panel is commonly used in conjunction with Rexroth Indramat controllers like the CLM, PPC, and DLC series. It is ideal for applications in machine tools, packaging lines, and automated assembly systems that rely on the SYSTEM200 architecture.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this refurbished component, you are helping to avoid approximately 25 kg of CO2 emissions associated with the production of a new unit. This is equivalent to the emissions from a 125 km car journey.

Availability

This item is a tested, used product in excellent condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

It is primarily designed for the Rexroth Indramat SYSTEM 200 architecture and is commonly used with CLM, PPC, and DLC controllers. Compatibility with other systems is not guaranteed and would require custom integration.

Programming and configuration are performed using legacy Indramat engineering software. The application project is typically downloaded to the terminal via its serial (RS-232) port.

No, there is no direct drop-in replacement. Migrating to a modern system would require a new HMI from the Bosch Rexroth IndraControl V series and significant reprogramming of the control application.
