Rexroth Pilot-Operated Pressure Relief Valve

Description

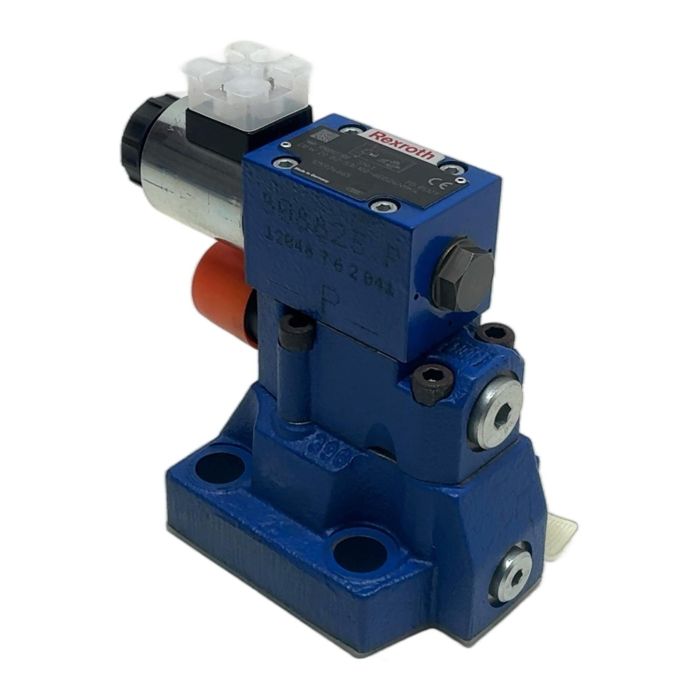

This is a DBW 20 series pilot-operated pressure relief valve from Bosch Rexroth, a leader in drive and control technology. This valve is designed to limit the pressure in a hydraulic system to a set maximum. It features a solenoid for unloading or for switching between two pressure levels, controlled by a 24V DC signal. Its robust construction ensures long-term reliability and precise operation.

Specifications

• Manufacturer: Rexroth
• Type: DBW 20 B2-53/100-6EG24N9K4
• Material Number (MNR): R900922308
• Component Series: 5X
• Size: 20
• Maximum Operating Pressure: 100 bar
• Control Voltage: 24V DC
• Mounting: Subplate mounting, pattern to ISO 6264
• Hydraulic Connection: Ports A, B, P, T

Label Info

• FD: 85323
• SN: 1

Application

Ideal for use in industrial hydraulics, machine tools, presses, and general manufacturing equipment where reliable pressure limitation and control are critical for safety and performance.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned component avoids approximately 31.4 kg of CO2 emissions compared to manufacturing a new one, supporting a more sustainable industrial ecosystem.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This code specifies the solenoid characteristics. '6E' indicates a solenoid-operated unloading function with a spring return. 'G24' means it operates on 24V DC. 'N9' refers to a concealed manual override, and 'K4' specifies the type of electrical connector, which is a standard DIN plug.

The nominal size '20' for this Rexroth valve corresponds to a maximum flow rate of approximately 300 liters per minute (l/min). Always consult the official datasheet for the exact performance curve based on your system's pressure and fluid viscosity.

This valve is typically compatible with mineral oil (HL, HLP) according to DIN 51524. For use with other fluids, such as synthetic or fire-resistant fluids, you must verify compatibility with the seal materials used in the valve by checking the full model code against the manufacturer's datasheet.
