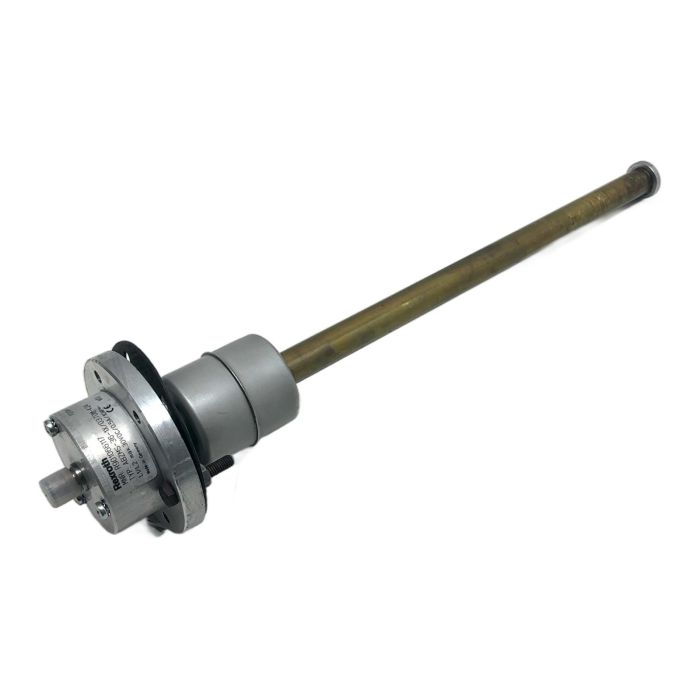

Rexroth Magnetic Float Level Switch

Description

The Rexroth ABZMS-36-1X/0370M-K24 is a high-quality magnetic float switch designed for precise liquid level monitoring. With an immersion depth of 370mm, it is ideal for use in hydraulic tanks and other industrial fluid reservoirs. This switch provides a reliable signal to prevent overflow or low-level conditions, protecting your equipment from damage.

Specifications

• Manufacturer: Rexroth
• Type: ABZMS-36-1X/0370M-K24
• Material Number: R901066117
• Immersion Length: 370 mm
• Electrical Rating: Max. 30VDC / 0.5A / 10W
• Switching Contact: 1 contact point

Label Info

• MNR: R901066117
• TYP: ABZMS-36-1X/0370M-K24
• L1/L2: max.30VDC/0.5A/10W

Application

This level switch is commonly used in hydraulic power units, lubrication systems, and coolant tanks to monitor fluid levels and trigger alarms or shut-offs.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you help save approximately 20 kg of CO2, equivalent to the emissions of driving a car for 100 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

It is primarily designed for mineral-oil based hydraulic fluids (HL, HLP), but compatibility with other media should be verified against the material specifications (brass tube, polyamide float).

The contact logic (Normally Open or Normally Closed) depends on the mounting orientation and float position. Typically, it functions as a single pole, single throw (SPST) switch that changes state as the float passes the reed contact inside the stem.

No, the switching point is fixed at a specific level determined by the position of the internal reed switch and the float's buoyancy characteristics. The immersion length of 370mm defines the overall operational range.
