Rexroth 4WE 6 Directional Spool Valve

Description

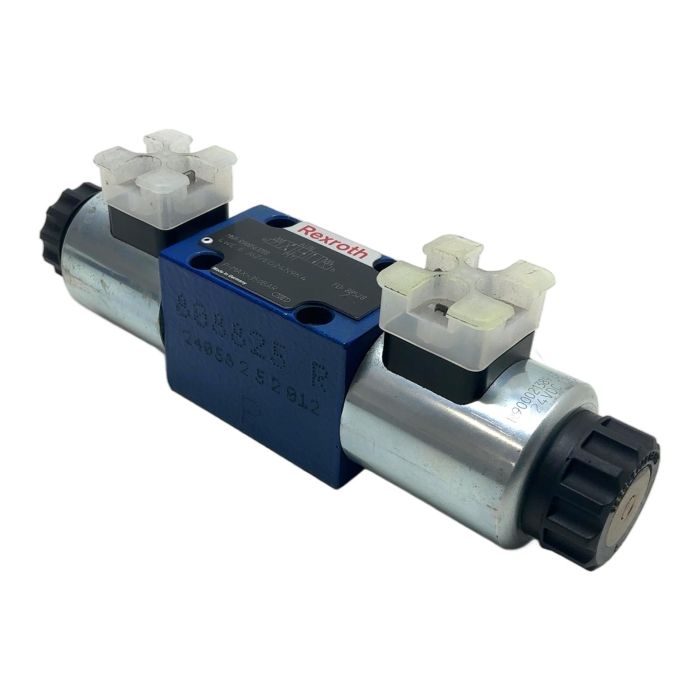

This is a 4WE 6 J62/EG24N9K4 directional spool valve manufactured by Bosch Rexroth. It is a direct-operated valve with solenoid actuation, designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. With a nominal size of NG6 (CETOP 3), it conforms to industry standards for mounting and interchangeability. The valve operates on a 24V DC supply and can handle pressures up to 350 bar, making it a versatile component for demanding industrial applications.

Specifications

• Manufacturer: Rexroth
• Type: 4WE 6 J62/EG24N9K4
• Material Number: R900561288
• Valve Type: Directional Spool Valve
• Size: NG6 / CETOP 3
• Actuation: 2 Solenoids
• Spool Type: J (Closed Center, 3-position)
• Operating Voltage: 24V DC
• Maximum Pressure: 350 bar
• Connection: Subplate mounting according to ISO 4401-03-02-0-05

Label Info

• MNR: R900561288
• Model: 4WE 6 J62/EG24N9K4
• FD: 88528
• P-MAX: 350BAR

Application

This valve is commonly used in machine tools, manufacturing equipment, mobile hydraulics, and general industrial machinery where precise control of hydraulic actuators is required.

Country of Origin

Made in Germany

CO2 Impact

By purchasing this pre-owned valve, you are avoiding the production of a new one, saving approximately 3.6 kg of CO2 emissions. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'J' spool type in this valve?

The 'J' spool designation in a Rexroth 4WE 6 valve indicates a 'closed center' configuration. This means that in the central, non-actuated position, all ports (P, T, A, and B) are blocked, which holds the hydraulic actuator in a fixed position.

The EG24N9K4 solenoid requires a DIN 43650-A / ISO 4400 (EN 175301-803) connector. These are standard industrial connectors for hydraulic and pneumatic solenoid valves.

Yes, this valve is equipped with concealed manual overrides at both ends of the solenoids. These can be pushed with a small tool to shift the spool manually, which is useful for system setup, testing, or emergency operation.
