Rexroth 4WE 6 Series Hydraulic Directional Valve

Description

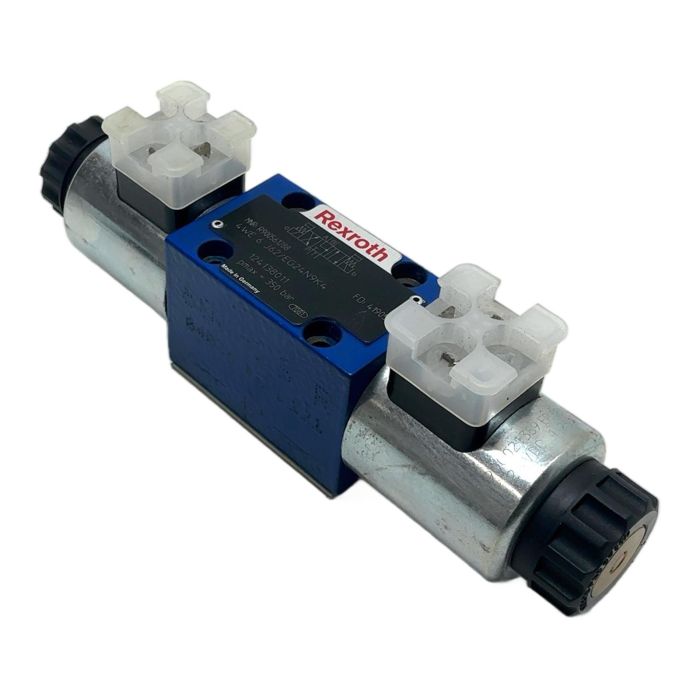

The Rexroth 4WE 6 J62/EG24N9K4 is a direct-operated directional spool valve with solenoid actuation. It is a key component for controlling the flow direction in hydraulic systems. Manufactured by Bosch Rexroth, this valve is known for its high performance, reliability, and long service life. This model operates on 24V DC power and can handle pressures up to 350 bar, making it suitable for a wide range of industrial applications.

Specifications

• Manufacturer: Rexroth
• Type: 4WE 6 J62/EG24N9K4
• Material Number: R900561288
• Valve Type: 4/3-way Directional Spool Valve
• Actuation: Solenoid Operated
• Size: NG6 (CETOP 3)
• Operating Voltage: 24V DC
• Maximum Pressure: 350 bar
• Spool Symbol: J (P-T, A-B blocked in center position)
• Electrical Connection: K4 (Connector to DIN EN 175301-803)

Label Info

• MNR: R900561288
• Model: 4WE 6 J62/EG24N9K4
• pmax: 350 bar

Application

This valve is commonly used in industrial machinery, machine tools, plastic injection molding machines, presses, and mobile hydraulics to control actuators such as cylinders and hydraulic motors.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you are helping to prevent the emission of approximately 15.0 kg of CO2, which is equivalent to the savings from driving a car for 75 km. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The "J" spool type indicates a closed-center configuration. In the neutral, non-actuated position, all ports (P, T, A, and B) are blocked. This is used to hold a hydraulic actuator in a fixed position when the valve is not energized.

The K4 designation refers to an individual connection using a standard connector according to DIN EN 175301-803 (formerly DIN 43650). This is a common, rectangular-shaped industrial connector, often called a DIN connector.

The N9 option includes a concealed manual override. It allows you to shift the valve spool manually without electrical power, typically for testing or emergency situations. You would use a small tool (like a pin or screwdriver) to push the button located in the center of the solenoid's end cap.
