Rexroth 4WE 10 Series Hydraulic Directional Control Valve

Description

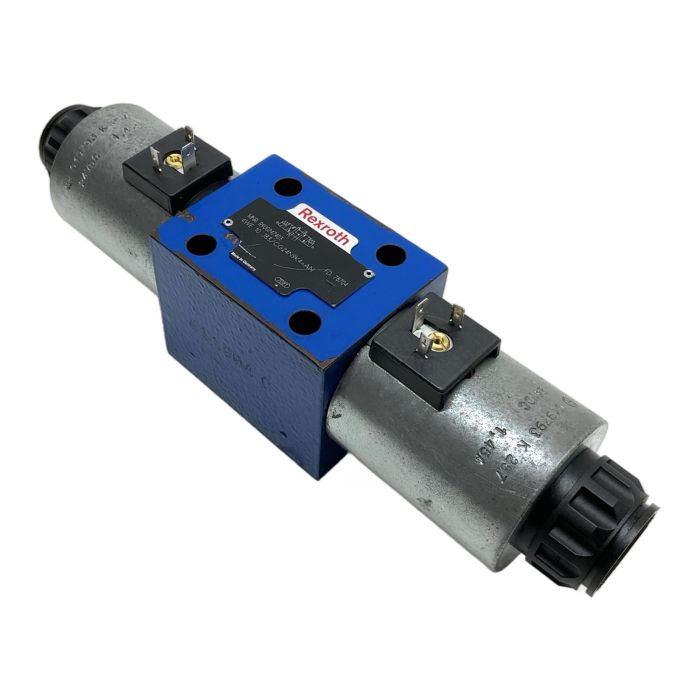

This is a used but well-maintained Rexroth 4WE 10 J33/CG24N9K4=AN, a high-performance, direct-operated directional spool valve with solenoid actuation. It is designed to control the start, stop, and direction of fluid flow in a hydraulic system. Engineered for reliability and a long service life, this valve is a staple in industrial applications requiring precise hydraulic control.

Specifications

• Manufacturer: Rexroth (Bosch Group)
• Type: 4WE 10 J33/CG24N9K4=AN
• Material Number: R900247403
• Actuation Type: Double Solenoid
• Control Voltage: 24V DC
• Nominal Size: 10 (NG10 / CETOP 5)
• Mounting Interface: ISO 4401-05-04-0-05
• Spool Symbol: J33
• Maximum Operating Pressure: 350 bar (5075 psi)
• Solenoids: With detachable coil and manual override

Label Info

• MNR: R900247403
• FD: 78704
• Type: 4WE 10 J33/CG24N9K4=AN
• Solenoid Voltage: 24VDC
• Solenoid Current: 1.45A

Application

This valve is suitable for a wide range of industrial hydraulic systems, including presses, injection molding machines, machine tools, and general manufacturing equipment where robust directional control is required.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this reconditioned valve over a new one prevents the emission of approximately 31.0 kg of CO2, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This valve uses the NG10 (CETOP 5) subplate mounting pattern according to the ISO 4401-05-04-0-05 standard, ensuring interoperability with standard hydraulic manifolds.

The K4 designation indicates that this valve is intended for use with plug-in connectors according to DIN EN 175301-803 (formerly DIN 43650), which must be ordered separately.

Yes, the solenoids feature a detachable coil design. This allows for the replacement of a single coil without needing to depressurize or remove the entire valve from the system, simplifying maintenance.
