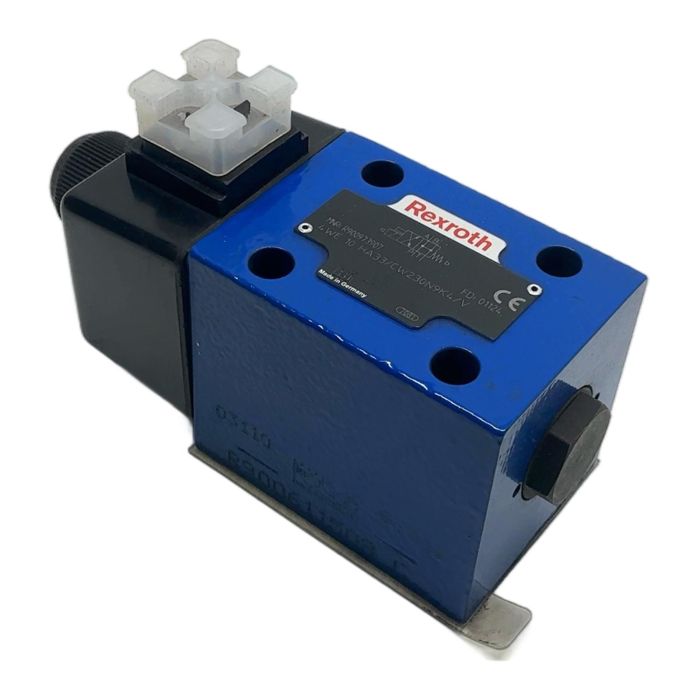

Rexroth 4/3-Way Hydraulic Directional Valve NG10 230V AC

Description

A robust and reliable direct-operated directional spool valve from Bosch Rexroth, model 4WE 10 HA33/CW230N9K4/V. This NG10 (CETOP 5) valve is designed for controlling the start, stop, and direction of fluid flow in a hydraulic system. It features a 230V AC solenoid for actuation and an 'H' type spool, which interconnects all ports in the spring-centered neutral position. This makes it suitable for applications requiring pressure relief or circulation in the idle state.

Specifications

• Manufacturer: Bosch Rexroth
• Type: 4WE 10 HA33/CW230N9K4/V
• Material Number: R900973907
• Valve Type: 4/3-Way Directional Spool Valve
• Operation: Direct Solenoid Actuated
• Size: NG10 / CETOP 5
• Spool Symbol: H (All ports interconnected in neutral position)
• Actuation Voltage: 230V AC (50/60 Hz)
• Electrical Connector: DIN EN 175301-803 (Form A)
• Seal Material: FKM (Viton)

Label Info

• Manufacturer: Rexroth
• MNR: R900973907
• Model: 4WE 10 HA33/CW230N9K4/V
• FD: 01124

Application

Ideal for use in machine tools, manufacturing equipment, presses, and general industrial hydraulic systems where reliable flow direction control is essential. The 'H' spool is often used in circuits with fixed displacement pumps to unload the pump in the neutral position.

Country of Origin

Made in Germany.

CO2 Impact

Reusing this component saves an estimated 16.4 kg of CO2, which is equivalent to the emissions of driving a car for 82 kilometers. By choosing a refurbished part, you contribute to a more sustainable industrial environment.

Availability

This item is a tested, used part in excellent working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'H' designates the spool type. In the neutral (de-energized) position, an 'H' spool connects all four ports (P, T, A, and B) together. This is often used to unload a fixed-displacement pump to the tank, reducing heat and energy consumption when the actuators are idle.

Yes, the solenoid coil on this valve (type 'C' in CW230N9K4) is detachable. You can replace the 230V AC coil with another compatible Rexroth coil of the same size, for example, a 24V DC coil, to match your system's control voltage. However, ensure the replacement coil has the correct specifications.

The '/V' indicates that the valve is fitted with FKM (Fluorocarbon rubber, commonly known as Viton) seals. These seals offer excellent resistance to high temperatures, mineral oils, hydraulic fluids, and many chemicals, making the valve suitable for a wider range of applications and fluids compared to standard NBR seals.
