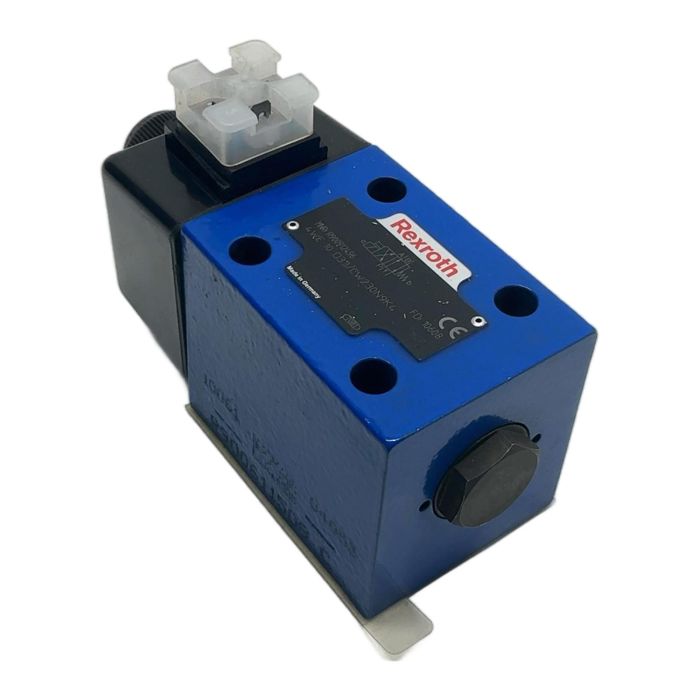

Rexroth 4WE 10 D33/CW230N9K4 Hydraulic Valve

Description

This is a direct-operated directional spool valve, model 4WE 10 D33/CW230N9K4, from Bosch Rexroth. It is a size NG10 valve with a standard porting pattern according to ISO 4401-05-04-0-94 (CETOP 5). This 4/3-way valve is solenoid-actuated and designed for high reliability in demanding industrial hydraulic applications. The 'D' spool configuration provides a float center position, where work ports A and B are connected to the tank while the pressure port P is blocked.

Specifications

• Manufacturer: Rexroth
• Type: 4WE 10 D33/CW230N9K4
• Material Number (MNR): R900912496
• Valve Type: 4/3-Way Directional Spool Valve
• Size: NG10 / CETOP 5
• Actuation: Solenoid with concealed manual override
• Solenoid Voltage: 230V AC, 50/60 Hz
• Spool Symbol: D
• Maximum Operating Pressure: 315 bar
• Connector: Base for DIN EN 175301-803

Label Info

• MNR: R900912496
• Type: 4WE 10 D33/CW230N9K4
• FD: 10608

Application

This valve is widely used in industrial machinery, manufacturing plants, and mobile hydraulics to control the direction of hydraulic cylinders and motors.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this refurbished component over a new one prevents the emission of approximately 9.0 kg of CO2. This saving is equivalent to the CO2 absorbed by a mature tree over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

NG10 refers to the nominal size of the valve's mounting interface, conforming to CETOP 5 and ISO 4401 standards. This ensures interchangeability with other NG10 standard valves and subplates, specifying a port pattern and flow capacity suitable for medium-sized hydraulic applications.

Yes, the solenoid coil on this valve is typically modular. You can replace the CW230N9K4 coil with a compatible Rexroth DC coil (e.g., CG24N9K4 for 24V DC), provided the valve body's actuator pin is compatible. Always consult the datasheet to ensure proper fit and function.

The 'D' spool configuration for this 4/3-way valve means it has a float or tandem center. In the neutral, non-actuated position, the pressure port (P) is blocked, while the work ports (A and B) are connected to the tank port (T). This allows the actuator, such as a hydraulic cylinder, to 'float' or be moved manually.
