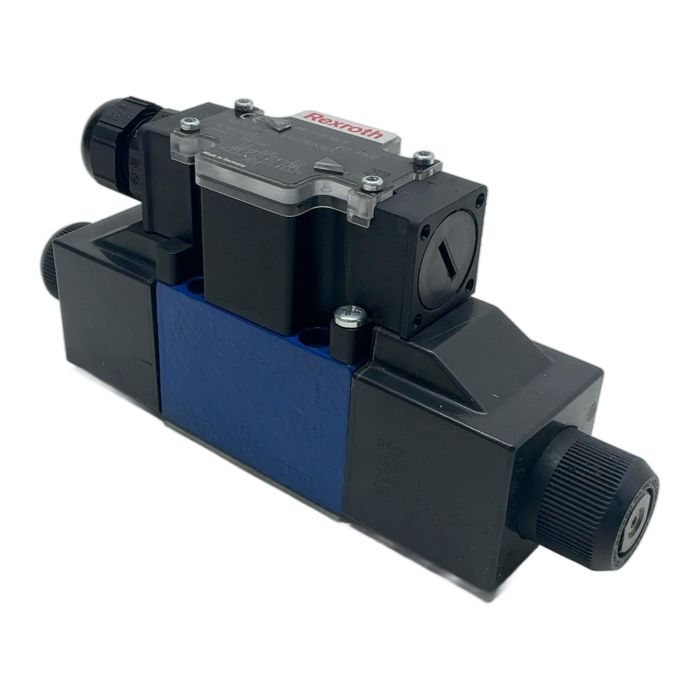

Rexroth 4WE 6 J62/EW230N9DL Hydraulic Directional Valve

Description

The Rexroth 4WE 6 J62/EW230N9DL is a high-performance, direct-operated directional spool valve. As a 4/3-way valve, it offers precise control over the flow of hydraulic fluid, making it a cornerstone component in industrial hydraulic systems. This model is actuated by a 230V AC solenoid and features a spring-centered 'J' spool, which blocks all ports in its neutral position for enhanced safety and control.

Specifications

• Manufacturer: Bosch Rexroth
• Type: 4WE 6 J62/EW230N9DL
• Material Number: R900558439
• Valve Type: 4/3-Way Directional Spool Valve
• Size: NG6 (CETOP 3)
• Maximum Operating Pressure: 350 bar
• Actuation: Solenoid-operated
• Solenoid Voltage: 230V AC
• Spool Symbol: J (All ports blocked in center position)

Application

This valve is widely used in machine tools, manufacturing equipment, presses, and mobile machinery where reliable and precise hydraulic control is essential. Its standard NG6 mounting interface ensures easy integration into new and existing systems.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused component saves an estimated 3.6 kg of CO2 compared to manufacturing a new one. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This valve is designed for use with mineral oil (HL, HLP) according to DIN 51524, and can also be used with synthetic fluids like HETG, HEES, and HEPG on request. Always check the fluid compatibility and seal material (NBR is standard) before installation.

The 'J' spool is a 3-position, spring-centered design. In the center (de-energized) position, all ports (P, T, A, B) are blocked. When solenoid 'a' is energized, flow is from P to A and B to T. When solenoid 'b' is energized, flow is from P to B and A to T.

The concealed manual override allows you to shift the spool without electrical power. It is typically a small pin located in the center of the solenoid retaining nut. To operate it, carefully push the pin with a suitable tool (e.g., a small screwdriver or rod). This is useful for system setup, testing, and emergency operations.
