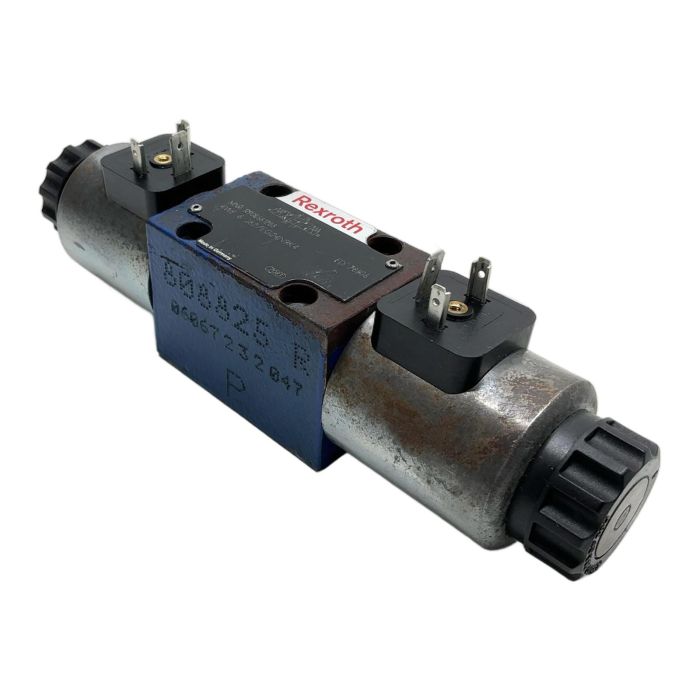

Rexroth 4WE 6 J62/EG24N9K4 Hydraulic Directional Valve

Description

The Rexroth 4WE 6 J62/EG24N9K4 is a high-performance, solenoid-actuated directional spool valve designed for reliable control in hydraulic systems. As a direct-operated valve with a nominal size of NG6, it adheres to the ISO 4401 mounting standard, ensuring interchangeability and ease of integration. This model operates on 24V DC and features a spring-centered 'J' spool, providing a safe neutral position. It is equipped with concealed manual overrides for diagnostics and emergency operation. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Rexroth
• Type: Solenoid-operated Directional Spool Valve
• Model: 4WE 6 J62/EG24N9K4
• Nominal Size: 6 (NG6)
• Mounting Interface: ISO 4401-03-02-0-05
• Actuation: Solenoid, 3-position, spring-centered
• Operating Voltage: 24V DC
• Electrical Connector: DIN EN 175301-803
• Manual Override: Concealed (N9)

Label Info

• MNR: R900561288
• Type: 4WE 6 J62/EG24N9K4
• ED: 78606

Application

This valve is widely used in industrial applications such as machine tools, presses, plastics machinery, and general manufacturing equipment where precise control of hydraulic actuators is required.

Country of Origin

Made in Germany

CO2 Impact

Choosing this reused component over a new one saves approximately 19 kg of CO2, which is comparable to driving a car for 95 kilometers.

Availability

This is a used item, tested and confirmed to be in good working condition. Available for immediate dispatch.

FAQ

What type of hydraulic fluid is compatible with this 4WE 6 valve?

This valve is designed for use with mineral oil (HL, HLP) according to DIN 51524, and can also be used with synthetic fluids like HFC (water glycols) with certain considerations for seals. Always consult the datasheet for specific fluid compatibility and operating temperature ranges.

What does the 'N9' in the type code 'EG24N9K4' signify?

The 'N9' designation indicates that the valve is equipped with a concealed manual override. This allows for manual actuation of the valve spool, for example, during setup, testing, or in case of a power failure, without needing a tool.

What is the maximum operating pressure and flow rate for this valve?

The Rexroth 4WE 6 J62/EG24N9K4 typically has a maximum operating pressure of up to 350 bar (5075 psi) and a maximum flow rate of around 80 liters per minute (21 GPM), depending on the specific spool and system conditions. Always verify with the official datasheet for your application's safety margins.
