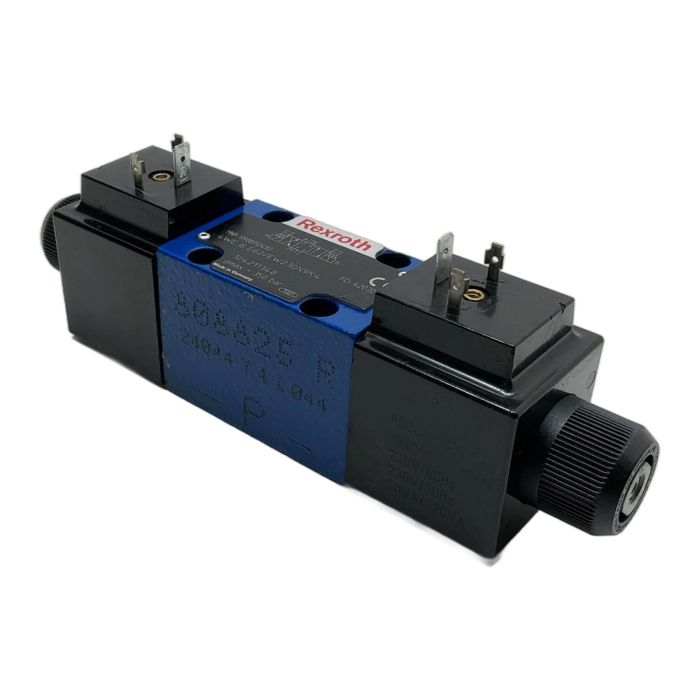

Rexroth 4WE 6 E62/EW230N9K4 Hydraulic Valve

Description

This is a high-quality directional spool valve, model 4WE 6 E62/EW230N9K4, from Bosch Rexroth. It is a direct-operated valve with solenoid actuation, designed for controlling the start, stop, and direction of fluid flow in a hydraulic system. With its robust construction and NG6 standard interface, it is ideal for a wide range of industrial applications requiring precise and reliable control. This unit is equipped with two 230V AC solenoids and features a spring-centered spool with a concealed manual override for emergency operation.

Specifications

• Manufacturer: Rexroth
• Type: 4WE 6 E62/EW230N9K4
• Component Series: 6X
• Size: 6 (NG6)
• Maximum Operating Pressure: 350 bar
• Spool Symbol: E (A, B, P, T blocked in neutral position)
• Actuation Type: Solenoid-operated
• Solenoid Voltage: 230V AC, 50/60Hz
• Electrical Connection: Per DIN EN 175301-803
• Hydraulic Fluid: Mineral oil (HL, HLP) per DIN 51524, etc.

Label Info

• MNR: R900912492
• Solenoid MNR: R900071030
• FD: 42030
• pmax: 350 bar

Application

This directional valve is commonly used in industrial machinery such as machine tools, presses, plastic injection molding machines, and general manufacturing equipment where reliable hydraulic control is essential.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you are contributing to a circular economy and helping to avoid 3.6 kg of CO2 emissions associated with the production of a new one. This saving is equivalent to the emissions from driving a standard car for 18 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the significance of the "E" spool type in this 4WE 6 E62 valve?

The "E" spool is a spring-centered, 3-position configuration. In its neutral (center) position, it blocks all four ports (P, T, A, and B). This is a 'closed-center' type, which locks the actuator (e.g., a hydraulic cylinder) in place when the solenoids are de-energized.

Can I use a different voltage solenoid coil with this valve body?

Yes, the solenoid coils on Rexroth 4WE 6 valves are generally interchangeable. You can replace the existing 230V AC coils (Part no. R900071030) with others of the same physical size but different voltages (e.g., 24V DC), provided you use the correct corresponding electrical connector. Always verify compatibility with the Rexroth datasheet.

What are the mounting requirements for this NG6 valve?

This valve conforms to the NG6 (CETOP 3 / ISO 4401-03) mounting pattern. It requires a flat, machined subplate or manifold block with the corresponding port pattern. It should be secured with four M5 bolts, tightened to the manufacturer's specified torque to ensure a proper seal.
