Rexroth NG10 4/3-Way Solenoid Directional Valve

Description

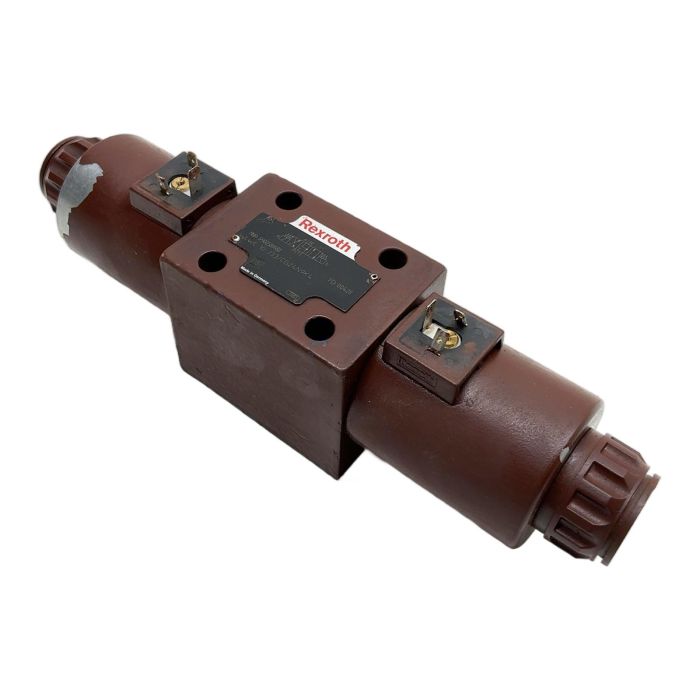

This is a used but highly reliable solenoid-operated directional spool valve, model 4WE 10 J33/CG24N9K4, from Bosch Rexroth. It is a direct-operated, size 10 (NG10) valve designed to control the flow direction in industrial hydraulic systems. Its robust construction ensures long service life even in demanding applications. This valve is ideal for controlling actuators such as cylinders and hydraulic motors.

Specifications

• Manufacturer: Rexroth
• Type: Solenoid Directional Spool Valve
• Model: 4WE 10 J33/CG24N9K4
• Material Number (MNR): R900589988
• Size: NG10 (ISO 4401-05-04-0-05)
• Spool Type: J (P to T flow in center position)
• Number of Ports: 4
• Number of Positions: 3
• Actuation: Solenoid-operated
• Solenoid Voltage: 24V DC
• Max Operating Pressure: 315 bar

Label Info

• MNR: R900589988
• Type: 4WE 10 J33/CG24N9K4
• FD: 00428

Application

This valve is commonly used in general industrial machinery, machine tools, plastic processing machines, and mobile hydraulic applications where precise control of hydraulic actuators is required.

Country of Origin

Made in Germany.

CO2 Impact

Reusing this component saves approximately 11 kg of CO2, which is comparable to the emissions from driving a car for 55 kilometers. Make a sustainable choice for your operations.

Availability

This item is a used, tested component in good working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

The "J" spool configuration means that in the neutral, unactuated position, the pressure port (P) is connected directly to the tank port (T). This depressurizes the system line, which can be a safety feature or a way to reduce energy consumption when the actuator is idle. The work ports (A and B) are blocked.

While the valve body is standard, the solenoids are voltage-specific. To change the operating voltage, you would need to replace the existing G24 (24V DC) solenoids with the correct AC solenoids and corresponding connectors from Rexroth. Direct replacement without changing the coils is not possible and would damage them.

NG10 refers to the nominal size of the valve ports and corresponds to the standardized ISO 4401-05-04-0-05 subplate mounting pattern (also known as CETOP 5). This ensures that the valve will fit on any standard NG10 manifold or subplate, regardless of the manufacturer, which makes it highly interchangeable in hydraulic systems.
