10mn NG10 / CETOP 5 Hydraulic Subplate

Description

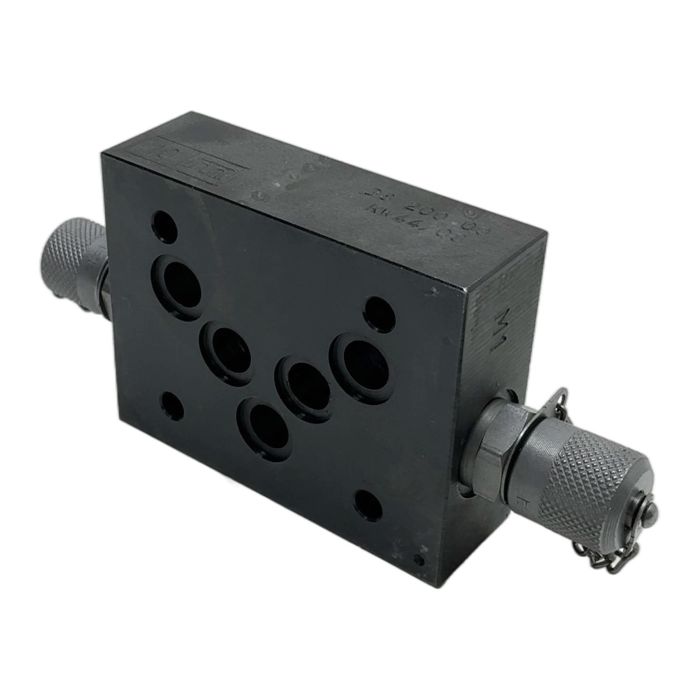

This is a cross-connection subplate, model 38 200 00, from the German hydraulic specialist 10mn (Manfred Nemitz GmbH). Designed to fit standard NG10 (CETOP 5) directional control valves, this plate is used to create specific hydraulic circuit functions by connecting or blocking ports directly beneath the valve. It is a robust and reliable component for building or modifying industrial hydraulic systems.

Specifications

• Manufacturer: 10mn (Manfred Nemitz GmbH)
• Part Number: 38 200 00
• Valve Size Standard: NG10 / CETOP 5
• Material: Steel
• Features: Includes two side ports with protective caps, likely for pressure testing.

Label Info

• Model: 38 200 00
• Date Code: KW 44/08 (Calendar Week 44, 2008)

Application

This subplate is ideal for applications in industrial machinery, presses, manufacturing lines, and mobile hydraulics where customized valve functions are required without complex external piping.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned subplate prevents the emission of approximately 5.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the energy needed to charge a smartphone 600 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the function of a cross-connection plate like the 10mn 38 200 00?

A cross-connection plate is installed beneath a standard directional control valve. It internally connects or blocks certain hydraulic ports (like P, T, A, B) to create a specific circuit function without external piping.

While not marked on this specific plate, standard steel NG10 / CETOP 5 subplates are typically rated for operating pressures up to 315 bar (approx. 4500 PSI). Always verify against your system's requirements.

The connectors on the sides are likely quick-disconnect test points, such as the Minimess type. They allow for easy connection of pressure gauges for system diagnostics and monitoring without interrupting operation.
