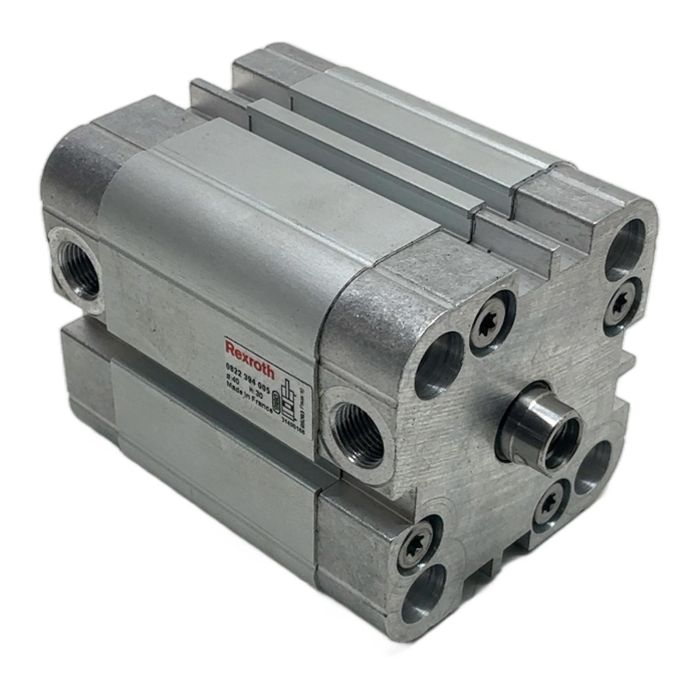

Rexroth Pneumatic Compact Cylinder 0822 394 005

Description

This is a high-quality pneumatic compact cylinder, model 0822 394 005, from Rexroth's CCI series. It is a double-acting cylinder designed for reliable performance in space-constrained industrial automation applications. With a 40 mm bore and a 30 mm stroke, it delivers precise linear motion for a variety of tasks.

Specifications

• Manufacturer: Rexroth
• Part Number: 0822 394 005
• Series: CCI (Compact Cylinder ISO)
• Function: Double-acting
• Piston Bore Diameter: 40 mm
• Stroke Length: 30 mm
• Piston Rod: Male Thread
• Cushioning: Elastic cushioning on both sides
• Maximum Operating Pressure: 10 bar
• Pneumatic Connection: G 1/8

Label Info

• B: 40 (Bore 40 mm)
• H: 30 (Hub/Stroke 30 mm)
• Pmax: 10 bar

Application

Ideal for clamping, positioning, ejecting, and short-stroke linear motion tasks in automated machinery, packaging systems, assembly lines, and material handling equipment.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component avoids the manufacturing of a new one, saving an estimated 7.2 kg of CO2. This saving is comparable to the emissions from a 36 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, this cylinder from the CCI series is designed with slots in the profile body to accommodate C-slot sensors for piston position detection.

For optimal performance and longevity, this cylinder should be operated with compressed air filtered to at least 50 micrometers. While it can run on non-lubricated air, using lubricated air is also possible and can extend the life of the seals.

For a CCI cylinder with a 40mm bore, the standard pneumatic connection ports are G 1/8 thread size. Always verify with the datasheet for your specific model.
