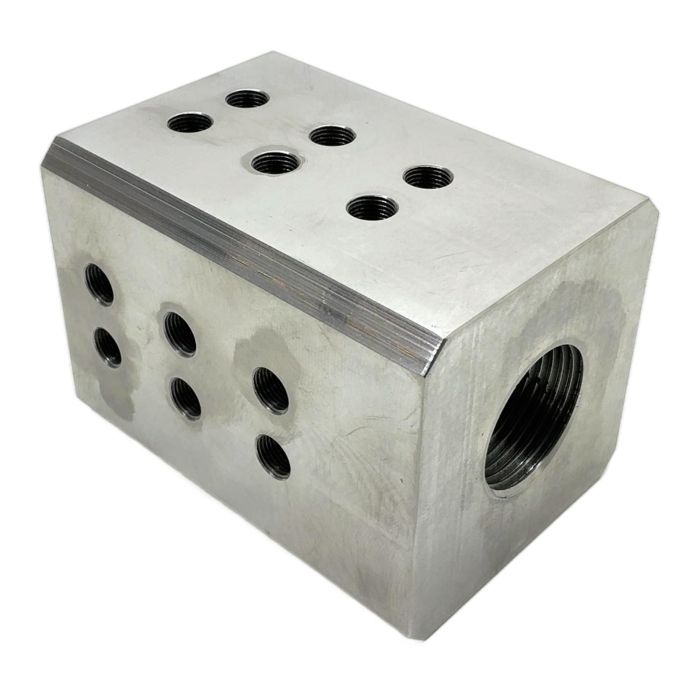

Bosch Hydraulic Manifold Block 0320A05486

Description

This is a custom-manufactured hydraulic manifold block from Bosch, identified by the drawing number 0320A05486. It is designed to act as a central distribution point in a hydraulic system, allowing for the organized connection of multiple lines. Constructed from premium materials, it provides a durable and reliable solution for complex hydraulic circuits.

Specifications

• Manufacturer: Bosch
• Part Number: 0320A05486
• Product Type: Hydraulic Manifold Block
• Material: AISI 304 / 1.4301 Stainless Steel
• Number of Ports: 13 (1 large inlet/outlet, 12 smaller distribution ports)

Application

This manifold is ideal for use in industrial machinery, manufacturing lines, and automated systems where precise control and distribution of hydraulic fluid is required. Its stainless steel construction makes it suitable for environments where corrosion resistance is critical.

Country of Origin

This product is manufactured in Germany.

CO2 Impact

Opting for this component helps save approximately 8.0 kg of CO2 compared to producing a new one. This environmental saving is equivalent to the emissions from driving a car for 40 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the material of this manifold block and what are its benefits?

This block is made from AISI 304 (1.4301) stainless steel, as specified on the technical drawing. This material offers excellent corrosion resistance, making it suitable for use with various hydraulic fluids and in harsh industrial environments. It also provides high strength and durability.

Can you provide the thread sizes for the ports?

The exact thread sizes are not explicitly stated on the provided documentation. Based on the drawing, it features one large inlet/outlet port and twelve smaller connection ports. Customers should verify the thread types (e.g., BSPP, NPT) and sizes with appropriate measuring tools before installation to ensure compatibility with their fittings.

Is this a standard Bosch Rexroth catalog item?

The part number 0320A05486 corresponds to a Bosch engineering drawing, suggesting it is likely a custom component designed for a specific machine or application rather than a standard off-the-shelf catalog product. This ensures it meets the exact specifications for its intended use.
