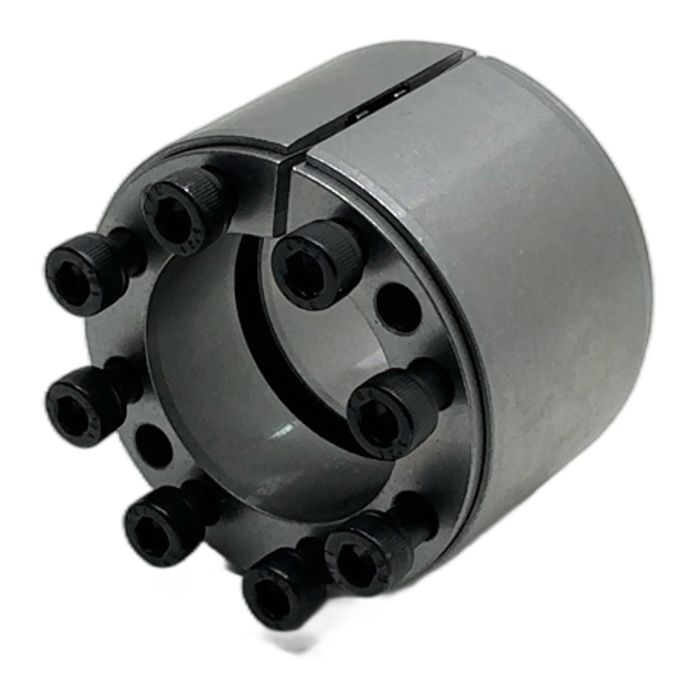

Rexnord Tollok TLK450 40x65 Locking Assembly

Description

The Rexnord Tollok TLK450 is a self-centering locking assembly designed for creating a backlash-free, keyless connection between a shaft and a hub. This model, with a 40mm inner diameter and 65mm outer diameter, is ideal for applications requiring high torque transmission and precise positioning. Its robust design ensures reliable performance in demanding industrial environments.

Specifications

• Manufacturer: Rexnord Tollok
• Part Number: T450040X065W
• Series: TLK450
• Inner Diameter (d): 40 mm
• Outer Diameter (D): 65 mm
• Transmittable Torque (Mt): 1950 Nm
• Number of Screws: 8
• Screw Size: M6
• Screw Tightening Torque (Ms): 17 Nm

Label Info

• Brand: Tollok Locking Assemblies
• Model: TLK450 40X65
• Order Code: T450040X065W

Application

This locking assembly is commonly used in gearboxes, conveyor belt pulleys, pump impellers, and other machinery where a secure and concentric shaft-hub connection is critical.

Country of Origin

Made in Italy.

CO2 Impact

By choosing this pre-owned but new component, you contribute to a circular economy and avoid the CO2 emissions associated with new production, estimated at 1.2 kg. Order now from PLC2Day for expert support and fast delivery.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

Question?

What is the recommended tightening torque for the M6 screws on the TLK450 40x65?

The manufacturer specifies a tightening torque (Ms) of 17 Nm for the M6 screws on this model. It is crucial to use a calibrated torque wrench and follow a criss-cross pattern for even pressure.

Can the Tollok TLK450 be used in an oily environment?

Yes, but the transmittable torque values are based on clean, dry, and grease-free contact surfaces (shaft and hub bore). If oil or grease is present, the transmittable torque will be reduced. Ensure all surfaces are thoroughly degreased before installation for optimal performance.

Is this TLK450 locking assembly self-centering?

The Tollok TLK450 series is a self-centering design. This feature ensures excellent concentricity between the hub and the shaft, which is critical for high-speed applications to minimize vibration.
