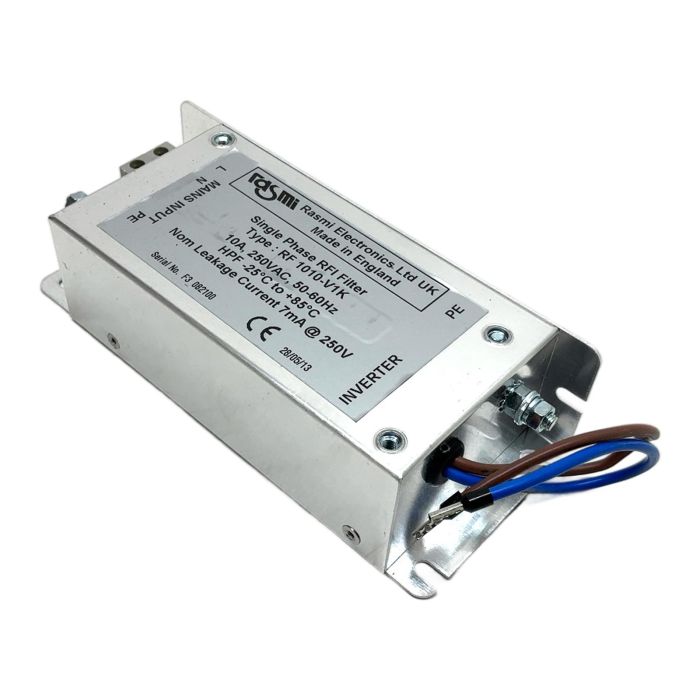

Product Details for Rasmi RF 1010-V1K

Description

The Rasmi RF 1010-V1K is a high-performance single-phase RFI filter designed to provide effective suppression of electromagnetic interference. It is engineered for general-purpose filtering in a wide range of industrial applications, particularly for cleaning the power supply to AC inverters and motor drives. Its robust metal housing ensures durability and excellent shielding in demanding environments.

Specifications

• Manufacturer: Rasmi Electronics
• Type: RF 1010-V1K
• Rated Voltage: 250VAC
• Rated Current: 10A
• Frequency: 50-60Hz
• Nominal Leakage Current: 7mA at 250V
• Operating Temperature: -25 to +85 deg C
• Phase: Single Phase

Label Info

• MAINS INPUT: L, N, PE terminals
• INVERTER: Output side wires
• Serial Number: F3 082100

Application

This RFI filter is ideal for use with variable speed drives, power supplies, automation equipment, and other systems that require compliance with EMC regulations and protection from mains-borne interference.

Country of Origin

Made in the United Kingdom.

CO2 Impact

Choosing this reused component over a new one saves approximately 16.0 kg of CO2 emissions, a significant contribution to sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This RFI filter is designed for single-phase applications, typically installed on the mains input side of an AC frequency inverter (motor drive) to suppress electromagnetic interference and ensure compliance with EMC standards.

Connect the mains power supply (Line, Neutral, PE) to the screw terminals labeled 'MAINS INPUT'. The output wires and the PE stud should be connected to the corresponding input terminals of the inverter or load. Ensure the metal casing has a solid ground connection for proper performance.

No, this is a general-purpose industrial filter. Medical-grade filters require much lower leakage current specifications. The nominal leakage current of 7mA for this unit exceeds the strict limits for medical equipment.
