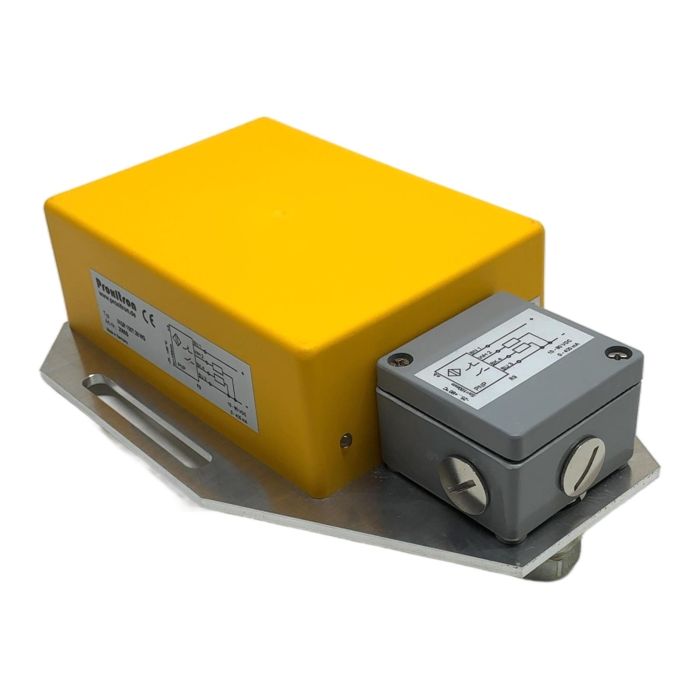

Proxitron IKQR 100T.38 MG Inductive Proximity Sensor

Description

The Proxitron IKQR 100T.38 MG is a high-performance inductive surface sensor designed for reliable position detection of metallic objects in demanding industrial environments. Its robust rectangular housing and large sensing distance of 100mm make it ideal for applications in steel production, rolling mills, and heavy machinery automation where durability and precision are critical.

Specifications

• Manufacturer: Proxitron
• Type: IKQR 100T.38 MG
• Article Number: 2065S
• Sensing Distance: 100 mm
• Operating Voltage: 10 - 80 VDC
• Output Type: PNP
• Max Output Current: 400 mA
• Connection: Terminal Box
• IP Rating: IP67 (assumed standard for this type)

Label Info

• Typ: IKQR 100T.38 MG
• Art.-Nr.: 2065S
• Voltage: 10-80 VDC
• Current: 0-400 mA
• Output: PNP

Application

This sensor is specifically built for heavy-duty applications, including but not limited to, slab and billet detection in steel mills, position monitoring of cranes and transport systems, and general automation tasks in harsh conditions.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned sensor saves approximately 30 kg of CO2, which is comparable to the emissions from driving a standard car for 150 kilometers. Make a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the nominal sensing distance (Sn) and is it adjustable?

The nominal sensing distance for the IKQR 100T.38 MG is 100 mm. This is a fixed distance and is not adjustable on the sensor itself. Ensure the target object comes within this range for reliable detection.

Is this sensor suitable for detecting non-ferrous metals like aluminum or copper?

Yes, as an inductive sensor, it can detect all types of metals. However, the sensing distance is reduced for non-ferrous metals. The 100mm rating applies to a standard mild steel target. For aluminum, the sensing range might be reduced by 40-60 percent.

What is the recommended wiring for the PNP output on this sensor?

The label indicates the standard wiring: Pin 1 (BN - Brown) for +VDC, Pin 3 (BU - Blue) for 0V (GND), and Pin 4 (BK - Black) for the PNP signal output. Pin 2 (WH - White) is typically for a complementary output, but should be connected according to the specific application diagram.
