Prakto 2.4L 30 Bar Pneumatic Air Vessel

Description

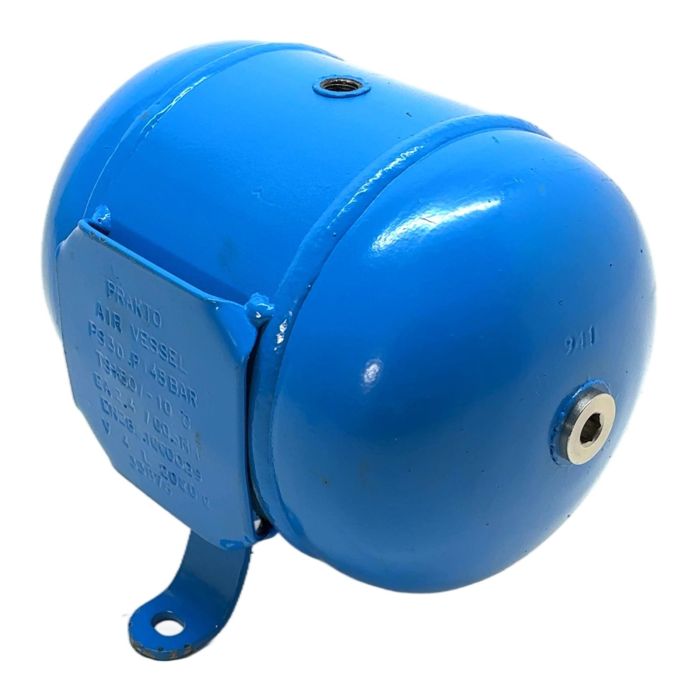

This is an air vessel, also known as a pressure tank, manufactured by Prakto. It is designed to store compressed air in pneumatic systems, helping to stabilize pressure, reduce compressor cycling, and handle peak demand. This unit is built from durable steel and conforms to the EN 286-1 standard for simple unfired pressure vessels.

Specifications

• Manufacturer: Prakto
• Volume: 2.4 Liters
• Maximum Allowable Pressure (PS): 30 Bar
• Test Pressure (PT): 45 Bar
• Operating Temperature (TS): -10 to +50 deg C
• Material: Painted Steel
• Mounting: Integrated steel bracket

Label Info

• Standard: EN286-1 CE0029
• Year of Manufacture: 2020
• Serial Number: 33876

Application

Ideal for use in industrial automation, workshops, and any application requiring a stable supply of compressed air. It acts as a buffer to smooth out air delivery from the compressor to the point of use.

Country of Origin

Manufactured in Turkey.

CO2 Impact

Opting for this pre-owned air vessel prevents the emission of approximately 6 kg of CO2, which would have been generated during the production of a new one. This is comparable to the emissions saved by charging a smartphone over 700 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the EN 286-1 standard signify for this air vessel?

EN 286-1 is a European standard that specifies requirements for the design, material, manufacturing, and testing of simple unfired pressure vessels intended to contain air or nitrogen. Compliance ensures a high level of safety and quality.

No, this vessel is specifically designed and certified under EN 286-1 for air or nitrogen only. Using other media, especially corrosive or flammable ones, could be dangerous and would void its certification.

Regular maintenance includes visual inspection for external corrosion or damage, checking all connections for leaks, and periodically draining any condensed moisture that accumulates inside to prevent internal corrosion.
