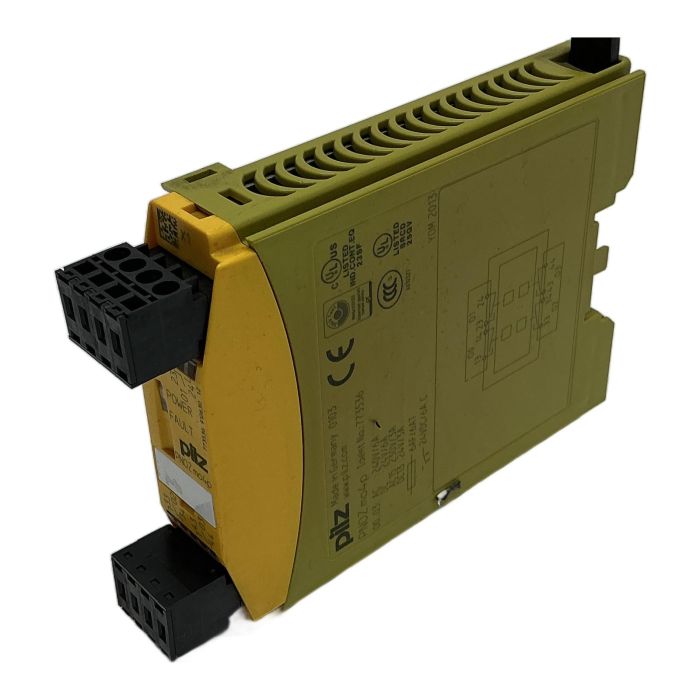

Pilz PNOZ mo4p 773536 Safety Relay Output Module

Description

The Pilz PNOZ mo4p is a high-reliability output expansion module for the PNOZmulti configurable safety system. It provides four safe relay outputs (N/O contacts) to safely switch actuators. This module is essential for expanding the capabilities of your PNOZmulti base unit, allowing for the control of multiple safety circuits with proven Pilz technology.

Specifications

• Manufacturer: Pilz
• Type: PNOZ mo4p
• Ident No.: 773536
• Supply Voltage: 24V DC
• Safety Outputs: 4 N/O contacts
• Max. Switching Voltage: 240V AC / 24V DC
• Max. Switching Current: 6A AC / 6A DC
• Protection Type: IP20
• Connection: Screw terminals

Label Info

• 00..03: RF - 240V/6A
• AC15: 230V/5A
• DC13: 24V/5A
• YOM: 2013

Application

Ideal for expanding safety applications such as emergency stop circuits, safety gate monitoring, light curtain control, and two-hand controls in manufacturing, packaging, and robotics industries.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this refurbished module, you help avoid the 7.2 kg of CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial environment.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the PNOZ mo4p is an expansion module and must be connected to a PNOZmulti base unit (e.g., PNOZ m0p, m1p, m2p) to function. The base unit performs the logic and controls the expansion modules.

The maximum number of expansion modules depends on the specific base unit. For a PNOZ m1p base unit, you can connect up to 4 I/O modules on the right side. Always consult the PNOZmulti Configurator software and the system manual for your specific base unit to ensure system limits are not exceeded.

Yes, the relay outputs are designed for safety applications up to PL e (EN ISO 13849-1) and SIL CL 3 (IEC 62061). The internal architecture uses force-guided relays to ensure a high level of diagnostic coverage and safety integrity.
