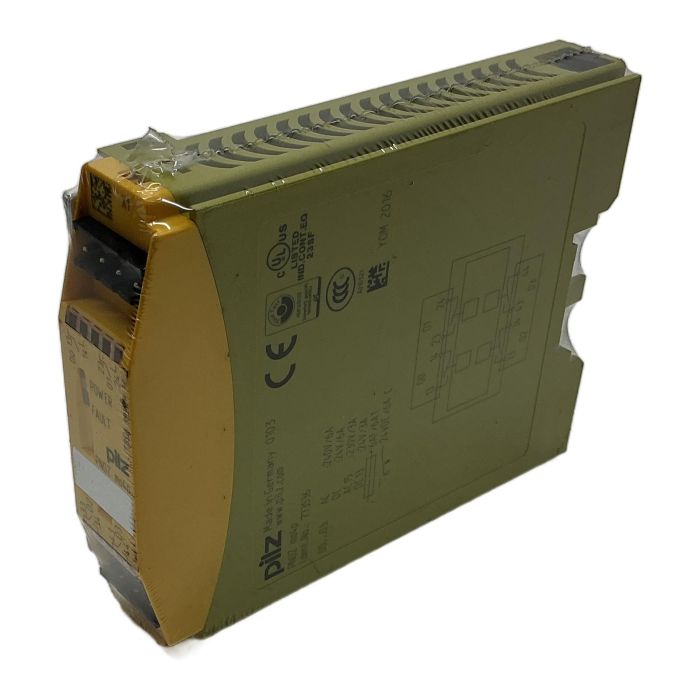

Pilz PNOZ mo4p Safety Relay Output Module

Description

The PNOZ mo4p with Ident.No. 773536 is a safe relay output expansion module for the configurable PNOZmulti safety system. It is designed to extend the functionality of a PNOZmulti base unit by providing four additional safe relay outputs. These outputs can be used to control actuators safely, making it an essential component for complex machine safety applications.

Specifications

• Manufacturer: Pilz
• Type: PNOZ mo4p
• Part Number: 773536
• Product Family: PNOZmulti
• Function: Safe Relay Output Module
• Number of Outputs: 4 safe relay outputs
• Contact Configuration: 2 N/O contacts per output
• AC-15 Switching Capacity: 230V / 3A
• DC-13 Switching Capacity: 24V / 3A
• Connection: Pluggable spring-loaded terminals (not included unless pictured)

Label Info

• Ident.No.: 773536
• Model: PNOZ mo4p
• YOM: 2016
• Made in Germany

Application

This module is used in a wide range of industries including manufacturing, packaging, and automation, wherever configurable safety logic with multiple safe outputs is required. It is suitable for applications such as emergency stop monitoring, safety gate monitoring, and light curtain control.

Country of Origin

This product is proudly Made in Germany.

CO2 Impact

By choosing this pre-owned module, you help save approximately 7.0 kg of CO2 emissions compared to purchasing a new one. This saving is equivalent to driving a car for about 35 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the PNOZ mo4p is an expansion module and requires a PNOZmulti base unit (e.g., PNOZ m1p or m0p) to function. It connects to the base unit via the internal bus system.

The contacts are rated for different loads. For resistive loads, it can switch up to 6A at 24VDC or 240VAC. For inductive loads, the rating is 3A at 24VDC (DC-13) or 3A at 230VAC (AC-15). Always check your application's load type against the datasheet.

No, the PNOZ mo4p is part of the classic PNOZmulti series. It is not compatible with PNOZmulti 2 base units. For PNOZmulti 2, you need to use the corresponding "m EF" series expansion modules.
