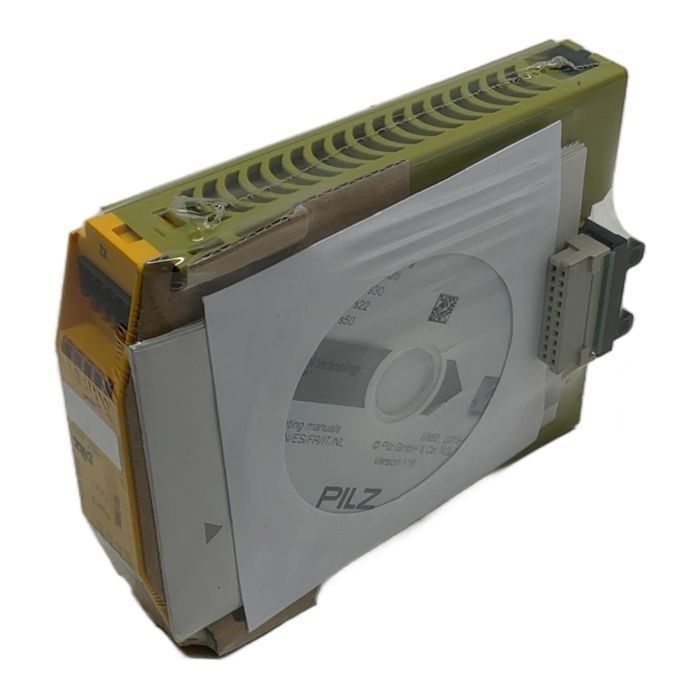

Pilz PNOZ mo1p Base Unit for PNOZmulti Safety System

Description

The Pilz PNOZ mo1p is the foundational base unit for the highly flexible and configurable PNOZmulti safety system. With Ident.No. 773500, this compact controller is engineered to manage multiple safety functions within a single device. It operates on a standard 24V DC power supply and provides four safe semiconductor outputs, each capable of handling up to 2A. This module is ideal for applications requiring the monitoring of emergency stop buttons, safety gates, light barriers, and other safety-related control components. Configuration is streamlined through the user-friendly PNOZmulti Configurator software, allowing for the creation of certified safety logic tailored to your specific machine requirements.

Specifications

• Brand: Pilz
• Model: PNOZ mo1p
• Part Number: 773500
• Supply Voltage: 24V DC
• Number of Safety Outputs: 4 semiconductor outputs
• Output Current: 2A per output
• Series: PNOZmulti

Label Info

• Ident.No.: 773500
• YOM (Year of Manufacture): 2019
• Input: 24V/0V - 24V DC
• Output: O0...O3 - 24V DC / 2A

Application

This configurable safety controller is widely used in mechanical engineering, packaging technology, robotics, and press applications to implement safety functions and ensure compliance with international safety standards.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned unit, you are helping to avoid the emission of approximately 6.4 kg of CO2, which is associated with the production of a new device. This is equivalent to the CO2 absorbed by a mature tree over a period of 4 months.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The PNOZ mo1p is configured using the PNOZmulti Configurator software. This graphical tool allows you to create and certify safety logic without traditional programming.

Yes, the PNOZ mo1p is the base unit for the modular PNOZmulti system. It can be expanded with a wide range of I/O modules, including safe digital and analog inputs, relay outputs, and communication modules.

The PNOZ mo1p can be used in applications up to SIL CL 3 according to IEC 62061 and PL e according to EN ISO 13849-1, depending on the application and configuration.
