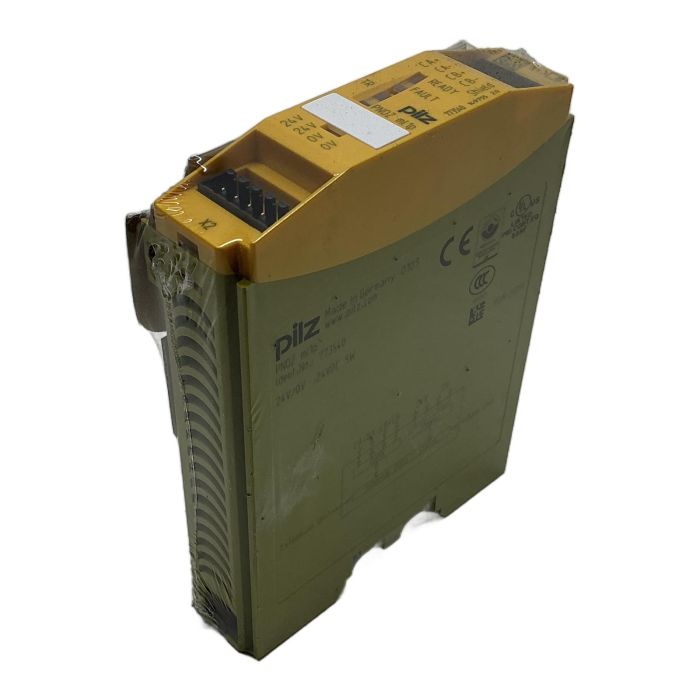

Pilz PNOZ ml1p Safe Link Expansion Module

Description

The Pilz PNOZ ml1p is a high-performance Safe Link expansion module for the PNOZmulti 2 configurable safety system. It is designed to create a safe connection between multiple PNOZmulti 2 base units, enabling secure data exchange for complex and decentralized applications. This module is essential for building modular and scalable safety architectures in modern industrial automation.

Specifications

• Manufacturer: Pilz
• Type: PNOZ ml1p
• Ident. No.: 773540
• System Family: PNOZmulti 2
• Function: Safe Link Module
• Supply Voltage: 24VDC
• Power Consumption: 5W
• Terminals: Screw terminals

Label Info

• Ident.No.: 773540
• Model: PNOZ ml1p
• Input: 24VDC 5W
• YOM: 2019

Application

This module is typically used in large-scale manufacturing plants, automotive production lines, and modular machinery where safety functions need to be coordinated across multiple control stations or physical areas. It allows for the safe linking of E-STOP circuits, light curtains, and other safety devices over long distances.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you contribute to a circular economy and help avoid approximately 10 kg of CO2 emissions associated with the production of a new unit. This is comparable to the emissions from driving a car for 50 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the PNOZ ml1p is an expansion module. It must be connected to a PNOZmulti 2 base unit (like a PNOZ m B0 or PNOZ m B1) to function. It serves to link different base units or decentralized modules together.

The connection between two PNOZ ml1p modules is made using a standard 4-wire shielded twisted pair cable. This setup allows for communication over distances up to 1000 meters, depending on the system configuration.

No, the configuration is not done on the module. All logic and communication parameters for the PNOZ ml1p are configured within the PNOZmulti Configurator software. The configuration is then downloaded to the base unit, which controls the entire system, including this expansion module.
