Pilz PNOZmulti Safe Input Module

Description

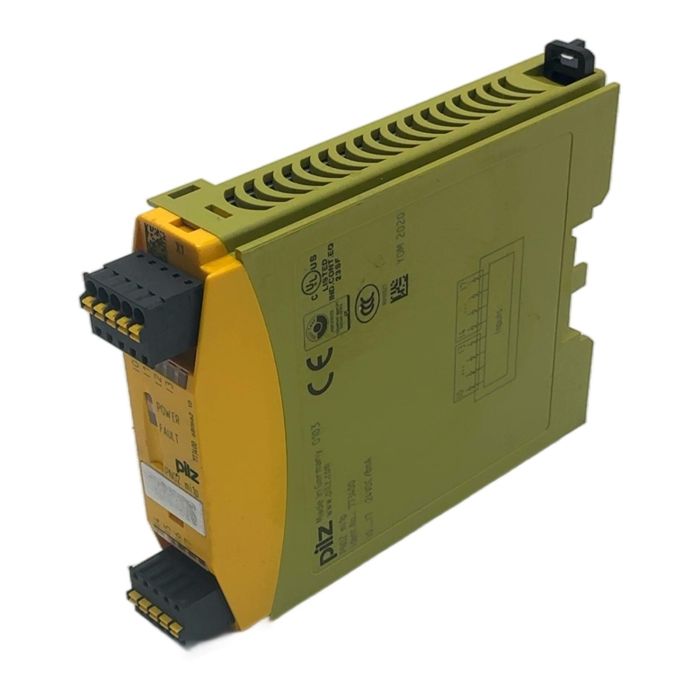

The PNOZ mi1p is a safe input expansion module for the configurable safety system PNOZmulti. It offers a simple and flexible way to expand the number of inputs on your safety controller, enabling the connection of additional safety functions like emergency stop buttons, safety gates, or light curtains. This module is designed for high reliability and seamless integration into existing PNOZmulti systems.

Specifications

• Manufacturer: Pilz
• Type: PNOZ mi1p
• Product Line: PNOZmulti
• Function: Safe Input Module
• Number of safe inputs: 8
• Supply Voltage: 24VDC
• Input Signal: 24VDC / 8mA
• Mounting: DIN Rail

Label Info

• Ident.No.: 773400
• YOM: 2020

Application

This module is ideal for expanding machine safety applications in various industries, including manufacturing, packaging, and automation. It allows for the monitoring of multiple safety sensors and devices, all processed by the central PNOZmulti base unit.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned module over a new one prevents the emission of approximately 6.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

Available from stock for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the PNOZ mi1p module used for?

It is a safe input expansion module for the Pilz PNOZmulti configurable safety system. It's used to connect safety devices like emergency stop buttons, safety gates, and light curtains, adding 8 safe digital inputs to the base unit.

No, the PNOZ mi1p requires a PNOZmulti base unit (like a PNOZ m0p, m1p, or m2p) to function. It connects to the base unit via the internal bus connector on the side.

No, the PNOZ mi1p is part of the PNOZmulti classic series and is not compatible with the PNOZmulti 2 base units. For the PNOZmulti 2, you would need a corresponding 'm EF' expansion module, such as the PNOZ m EF 8DI.
