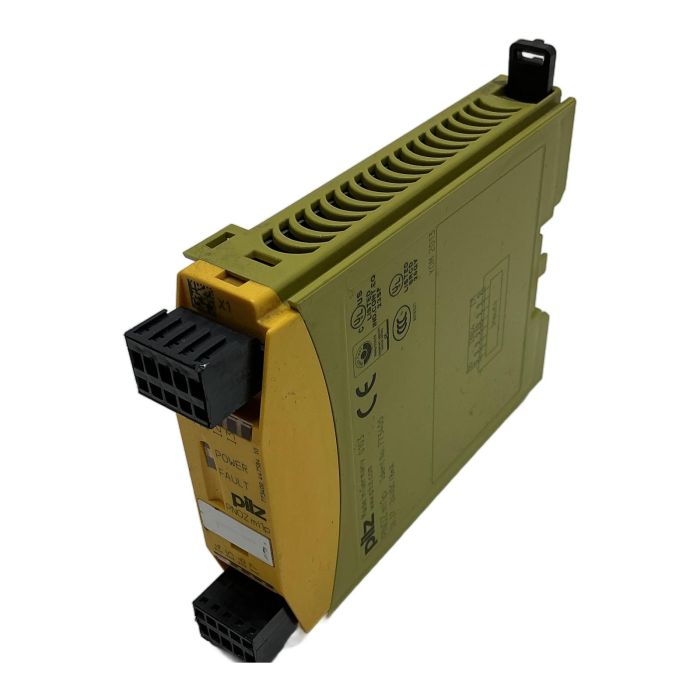

Pilz PNOZ mi1p Safety Input Module

Description

The Pilz PNOZ mi1p is a safe input expansion module for the PNOZmulti configurable safety system. It provides 8 additional digital inputs for connecting safety devices such as E-stops, safety gates, and light curtains. This module allows for flexible expansion of your machine safety architecture, ensuring reliable monitoring and control. It is easily configured using the PNOZmulti Configurator software via the connected base unit.

Specifications

• Manufacturer: Pilz
• Type: PNOZ mi1p
• Ident No.: 773400
• System: PNOZmulti
• Function: Safe Input Expansion Module
• Number of Safe Inputs: 8
• Input Voltage: 24 VDC
• Input Current: 8 mA
• Mounting: DIN Rail

Label Info

• Pilz PNOZ mi1p
• Ident No.: 773400
• Made in Germany
• YOM: 2013

Application

Ideal for expanding existing PNOZmulti safety systems in various industries, including packaging, automotive, robotics, and general machine building. It is used to integrate additional safety sensors and switches into a centralized safety logic.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this refurbished component, you are actively contributing to the circular economy and have helped avoid approximately 6.0 kg of CO2 emissions, which would have been generated during the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What PNOZmulti base units is this module compatible with?

The PNOZ mi1p is part of the PNOZmulti Classic family and is compatible with base units from that series, such as the PNOZ m1p, m2p, and others. It is not compatible with the newer PNOZmulti 2 series base units.

Yes, configuration is done using the PNOZmulti Configurator software. The configuration is created for the entire system and then downloaded to the base unit, which in turn communicates with the PNOZ mi1p expansion module.

No, the PNOZ mi1p is an expansion module and cannot function on its own. It must be connected to a compatible PNOZmulti base unit to operate.
