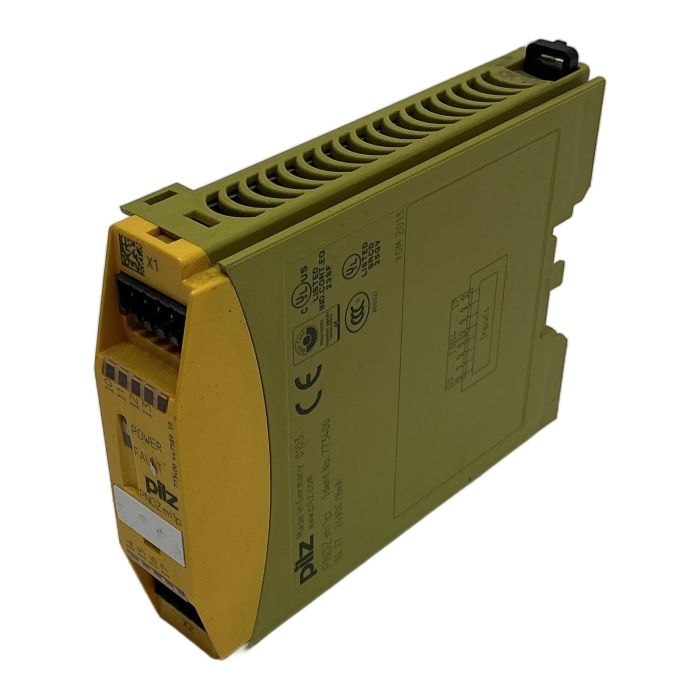

Pilz PNOZ mi1p Safety Input Module

Description

The PNOZ mi1p with part number 773400 is a safe input module from Pilz, designed for the PNOZmulti configurable safety system. This expansion module provides 8 safe digital inputs, allowing for the connection and monitoring of various safety components like emergency stop buttons, safety gates, or light curtains. It seamlessly integrates with a PNOZmulti base unit to create a comprehensive and certified safety solution for machinery and automation systems. Its compact design and reliable performance make it an excellent choice for expanding existing safety circuits.

Specifications

• Manufacturer: Pilz
• Model: PNOZ mi1p
• Part Number: 773400
• System: PNOZmulti Classic
• Function: Safe Input Expansion Module
• Number of Safe Inputs: 8
• Input Voltage: 24 VDC
• Safety Certification: PL e (EN ISO 13849-1), SIL CL 3 (IEC 62061)

Label Info

• Ident No.: 773400
• IO...17: 24VDC / 8mA
• YOM: 2013

Application

This module is typically used in industrial automation to expand the input capacity of a PNOZmulti safety controller. It is ideal for applications requiring the monitoring of multiple safety functions, such as on complex production lines, robotic cells, or packaging machines.

Country of Origin

Made in Germany.

CO2 Impact

By reusing this component, you are avoiding approximately 6.0 kg of CO2 emissions, which is comparable to driving a car for 30 km.

Availability

This item is a tested, used component ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Can this PNOZ mi1p module be used with a PNOZmulti 2 base unit?
No, the PNOZ mi1p (773400) is part of the original PNOZmulti Classic series and is not compatible with the newer PNOZmulti 2 base units. You must use it with a compatible PNOZmulti Classic base unit like a PNOZ m1p.

What is the maximum safety level I can achieve with this input module?
The PNOZ mi1p module, when used correctly within a PNOZmulti system, can be used in applications up to Performance Level (PL) e according to EN ISO 13849-1 and Safety Integrity Level (SIL) CL 3 according to IEC 62061.

Does this module require its own power supply?
No, the PNOZ mi1p is an expansion module. It receives its power directly from the PNOZmulti base unit it is connected to. The 24VDC specification refers to the voltage required for the connected input signals (e.g., from sensors or switches).
