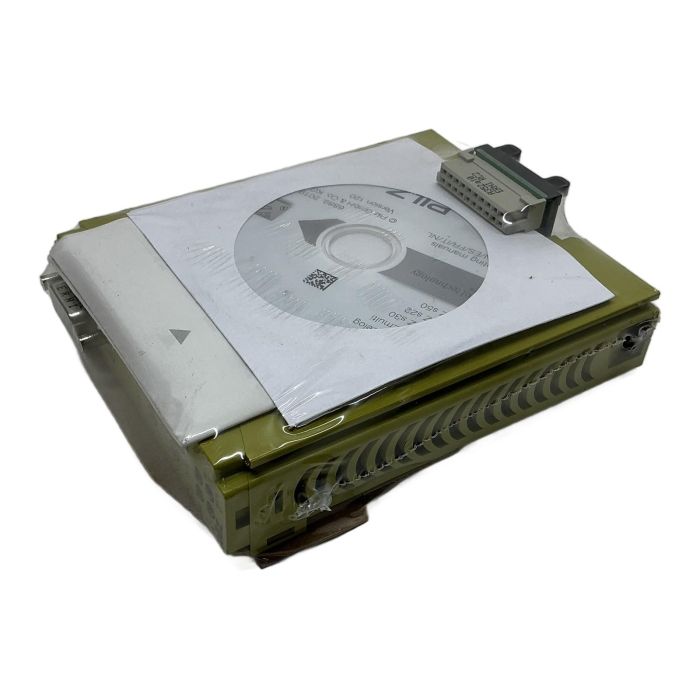

Pilz PNOZ mc3p PROFIBUS-DP Module for PNOZmulti

Description

The PNOZ mc3p with order number 773732 is a fieldbus module designed by Pilz for the PNOZmulti configurable safety system. This module functions as a PROFIBUS-DP slave, enabling seamless communication between the PNOZmulti base unit and a higher-level controller or PROFIBUS master. It is used to transmit diagnostic data and status information from the safety controller to the network, enhancing system transparency and simplifying troubleshooting.

Specifications

• Manufacturer: Pilz
• Type: PNOZ mc3p
• Order Number: 773732
• System Compatibility: PNOZmulti
• Fieldbus Protocol: PROFIBUS-DP Slave
• Transmission Rate: Up to 12 MBit/s, automatically detected
• Interface: 9-pin D-Sub female connector
• Address Setting: Via rotary switches on the front panel
• Supply Voltage: 24V DC

Label Info

• Model: PNOZ mc3p
• Part No.: 773732
• Ident No.: 183254

Application

This module is ideal for applications where safety functions managed by a PNOZmulti controller need to be integrated into a larger automation architecture using PROFIBUS-DP. Common uses include machine building, automotive manufacturing, and process industries where centralized monitoring and diagnostics are required for safety systems.

Country of Origin

This product is manufactured in Germany.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and avoiding approximately 6.0 kg of CO2 emissions. This saving is equivalent to the CO2 produced by driving a standard passenger car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the PNOZ mc3p (773732) is designed specifically for the classic PNOZmulti system. The PNOZmulti 2 system requires a different series of communication modules, such as the PNOZ m EF PROFIBUS (773741).

The module supports all standard PROFIBUS-DP transmission rates up to a maximum of 12 MBit/s. The rate is typically detected automatically upon connection to the network.

The PROFIBUS slave address is set manually using the two rotary switches located on the front of the module. The switches allow for addresses from 00 to 99 to be configured directly on the hardware without software tools.
