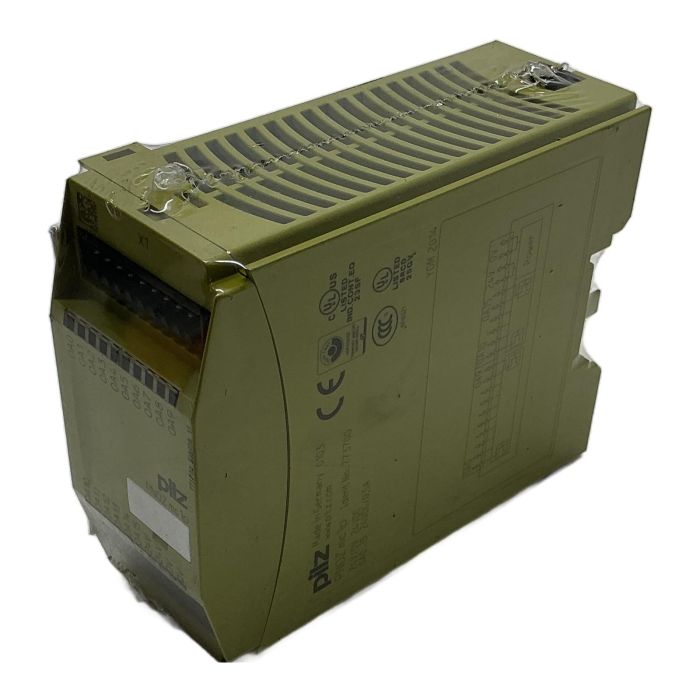

Pilz PNOZ mc1p Safe Relay Output Module

Description

The PNOZ mc1p with Ident No. 773700 is a safe relay output module from Pilz, designed for the PNOZmulti classic configurable safety system. This expansion module provides 16 safe semiconductor outputs to reliably control actuators within a safety-related application. It is an essential component for extending the functionality of existing PNOZmulti systems in industrial automation and machine safety environments.

Specifications

• Manufacturer: Pilz
• Type: PNOZ mc1p
• Ident No.: 773700
• System Family: PNOZmulti Classic
• Module Type: Safe Relay Output Module
• Number of Outputs: 16 (OA0...15)
• Output Voltage: 24VDC
• Output Current: 0.5A per output
• Supply Voltage: 24VDC
• Lifecycle Status: Obsolete

Label Info

• Made in Germany
• YOM: 2014

Application

This module is specifically used to expand the number of safe outputs on a PNOZmulti classic base unit. It is ideal for applications requiring the control of multiple safety functions, such as controlling contactors, valves, and other actuators in accordance with safety standards.

Country of Origin

Germany

CO2 Impact

By purchasing this pre-owned module, you are contributing to the circular economy and have helped avoid approximately 10.0 kg of CO2 emissions that would have been generated from manufacturing a new one.

Availability

This is an obsolete item, available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this PNOZ mc1p module compatible with the PNOZmulti 2 system?

No, the PNOZ mc1p (773700) is part of the obsolete PNOZmulti classic series and is not compatible with the newer PNOZmulti 2 base units. For PNOZmulti 2, you need to use corresponding PNOZ m2 expansion modules.

The PNOZ mc1p provides diagnostics via LEDs on the PNOZmulti base unit and through the PNOZmulti Configurator software. It can indicate status for power, output states, and fault conditions like short-circuits on the outputs.

While each of the 16 outputs is rated for 0.5A, the total current for the module should not be exceeded. Please consult the official Pilz technical documentation for the specific total current limit and derating curves based on ambient temperature to ensure safe operation.
