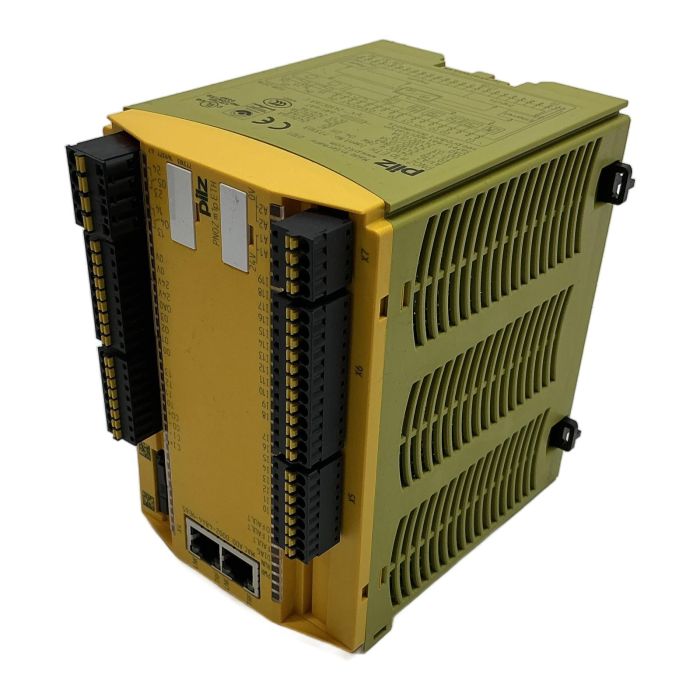

Pilz PNOZ m1p ETH Configurable Safety PLC

Description

The Pilz PNOZ m1p ETH (Ident No. 773103) is a versatile and powerful base unit for the PNOZmulti configurable safety system. It allows for the implementation of multiple safety functions within a single device, such as emergency stop, safety gate monitoring, and light curtain supervision. With its integrated Ethernet interface, this unit offers enhanced diagnostic capabilities for quick troubleshooting and communication with HMI or standard PLC systems.

Specifications

• Supply Voltage: 24V DC (9...28W)
• Number of Inputs: 20 digital safety inputs (24V DC / 8mA)
• Number of Outputs: 4 safe semiconductor outputs (24V DC / 2A), 2 safe relay outputs (240V AC / 6A)
• Communication Interface: Ethernet
• Safety Level: Achieves up to PL e (EN ISO 13849-1) and SIL CL 3 (IEC 62061)
• Mounting: DIN Rail

Label Info

• Manufacturer: Pilz
• Model: PNOZ m1p ETH
• Ident No.: 773103
• MAC Address: 0002-4844-9E65
• Year of Manufacture: 2016

Application

This safety controller is ideal for a wide range of industries including automotive, packaging, robotics, and press control. It consolidates safety circuits, reduces wiring complexity, and simplifies safety system design and validation.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this reconditioned PNOZ m1p ETH instead of a new one saves approximately 20.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This unit is configured using the PNOZmulti Configurator software. It is important to use a software version that is compatible with the firmware of the device for proper functionality.

Yes, the PNOZmulti system is modular. This base unit can be expanded with a variety of safe input, output, and communication modules from the PNOZmulti series. Always check the product documentation for compatible expansion modules.

The Ethernet port is primarily used for diagnostics and visualization. It allows you to monitor the status of inputs, outputs, and internal logic in real-time. It can also be used to communicate status information to HMIs or standard PLCs, but it is not a safety-rated network protocol.
