Pilz PNOZmulti Configurable Safety Controller

Description

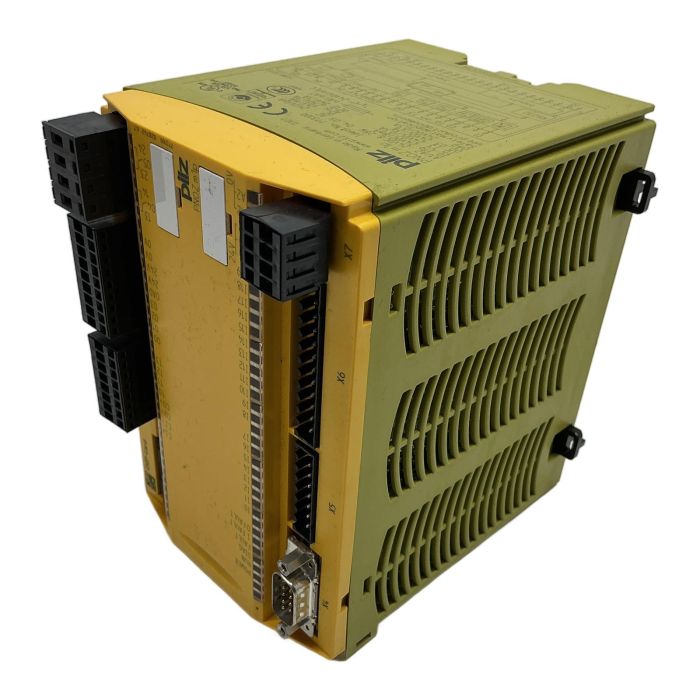

The PNOZ m1p with Ident No. 773100 is the foundational base unit for the PNOZmulti configurable safety system from Pilz. This powerful controller allows for the implementation of multiple safety functions within a single device. It's an ideal solution for managing safety applications such as emergency stops, safety gates, light barriers, and more. With its intuitive PNOZmulti Configurator software, creating and modifying safety logic is straightforward, making it a flexible choice for various industrial automation environments.

Specifications

• Manufacturer: Pilz
• Model: PNOZ m1p
• Ident No.: 773100
• Supply Voltage: 24 VDC
• Inputs: 20 digital safety inputs (24VDC / 8mA)
• Semiconductor Outputs: 4 (T0-T3 at 24VDC / 0.5A)
• Relay Outputs: 2 (Contacts rated for 240V AC / 6A)
• Communication Interface: RS232 (X4)
• Protection Class: IP20

Label Info

• PNOZ m1p
• Ident No: 773100
• Made in Germany
• YOM: 2013

Application

This unit is suitable for machine safety applications requiring the monitoring of multiple safety devices. It is commonly used in packaging machinery, robotics cells, material handling systems, and production lines to ensure compliance with international safety standards.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the emission of approximately 20.0 kg of CO2, which would have been generated during the production of a new unit. This promotes a sustainable, circular economy in the industrial sector.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The PNOZ m1p is programmed using the PNOZmulti Configurator software. It is important to use a version of the software that is compatible with the firmware of the base unit.

No, the PNOZ m1p is part of the original PNOZmulti 'classic' series. It is only compatible with expansion modules from this same series and cannot be mixed with modules from the newer PNOZmulti 2 family.

The chip card slot is used to store the user-configured safety program. This allows for easy program transfer and device replacement in the field without needing a PC with the PNOZmulti Configurator installed.
