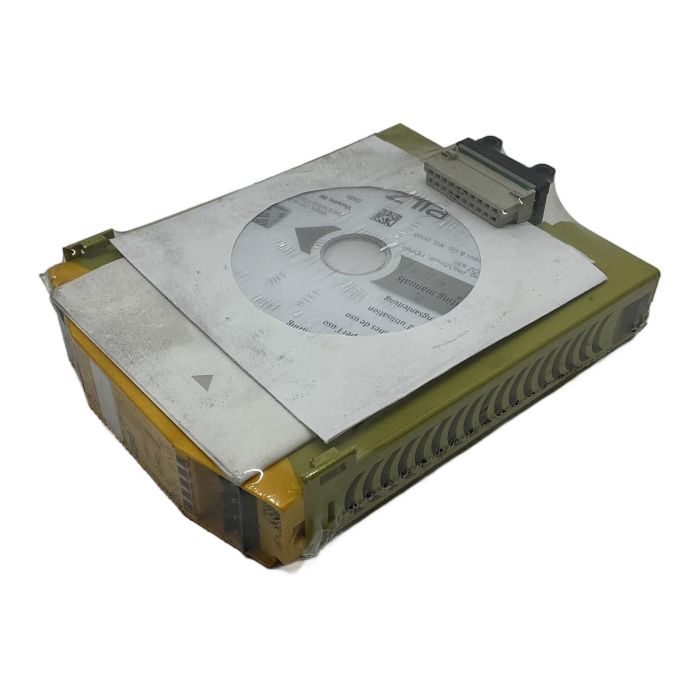

Pilz PNOZ m04p 773536 Safety Relay Output Module

Description

The Pilz PNOZ m04p is a relay output expansion module for the PNOZmulti configurable safety system. It provides four additional safety outputs, allowing for the expansion of safety functions in machinery and plant engineering. This module can be easily configured using the PNOZmulti Configurator software to function as either non-delayed or delayed outputs, offering high flexibility for various safety applications.

Specifications

• Manufacturer: Pilz
• Type: PNOZ m04p
• Part Number: 773536
• Product Family: PNOZmulti
• Function: Relay Output Expansion Module
• Number of Outputs: 4 N/O (Normally Open) safety outputs
• Voltage Rating: 24V DC

Label Info

• Ident.No.: 773536
• AC15 Rating: 230V / 3A
• DC13 Rating: 24V / 3A
• Year of Manufacture: 2016

Application

This module is designed for use in safety-related applications, such as emergency stop circuits, safety gate monitoring, light curtains, and other safety functions that require reliable switching of safety-related circuits within an automated system.

Country of Origin

Made in Germany.

CO2 Impact

Opting for a reconditioned PNOZ m04p module avoids the production of a new one, saving approximately 8.0 kg of CO2. This saving is comparable to driving a car for 40 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

It is compatible with all base units from the classic PNOZmulti control system family, such as the PNOZ m0p, PNOZ m1p, or PNOZ m2p.

The PNOZ m04p is configured within the PNOZmulti Configurator software tool as part of the overall safety project. The configuration is then downloaded to the base unit.

Yes, the PNOZ m04p supports both non-delayed and delayed switching functions, which can be defined in the PNOZmulti Configurator software to suit the specific application requirements.
