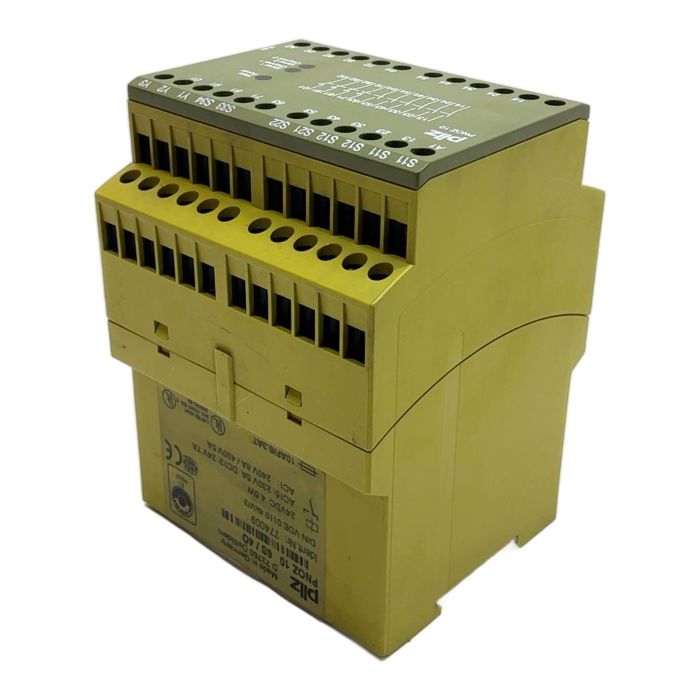

Pilz PNOZ 10 Safety Relay

Description

The Pilz PNOZ 10 is a versatile safety relay designed for critical safety applications in industrial automation. This unit, model 774009, operates on a 24VDC supply and is engineered to monitor safety functions such as E-STOP pushbuttons, safety gates, and light barriers. Its robust design and proven reliability make it an excellent choice for ensuring machine and operator safety in compliance with international standards.

Specifications

• Manufacturer: Pilz
• Model: PNOZ 10 6S/4O
• Ident. Number: 774009
• Supply Voltage: 24VDC
• Power Consumption: 4.5W
• Safety Contacts: 6 N/O
• Auxiliary Contacts: 4 N/O
• Contact Rating (AC15): 230V 5A
• Contact Rating (DC13): 24V 7A
• Mounting: DIN Rail

Label Info

• PNOZ 10 6S/4O
• Ident.Nr: 774009
• 24VDC 4.5W
• Made in Germany

Application

This safety relay is ideal for implementing safety functions in manufacturing plants, processing lines, and on standalone machinery. It is typically used for monitoring emergency stop circuits, interlocking safety guards, and integrating other safety-related control components.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are actively participating in the circular economy and helping to prevent approximately 12 kg of CO2 emissions that would be generated by manufacturing a new one.

Availability

This unit is an obsolete model but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between the PNOZ 10 and a standard industrial relay?

The PNOZ 10 is a safety relay designed with redundant, force-guided contacts. This ensures that if one contact welds shut, the other will not close, a critical feature for safety circuits that standard relays do not have.

Yes, the PNOZ 10 is designed for flexibility. It can be wired to monitor both single-channel and dual-channel safety devices like E-stop buttons or safety gates, providing a high level of safety integrity.

No, the Pilz PNOZ 10 is a hard-wired safety relay. Its logic is determined by the physical wiring of the terminals according to the diagrams provided in the manufacturer's manual. It does not require any software for configuration.
