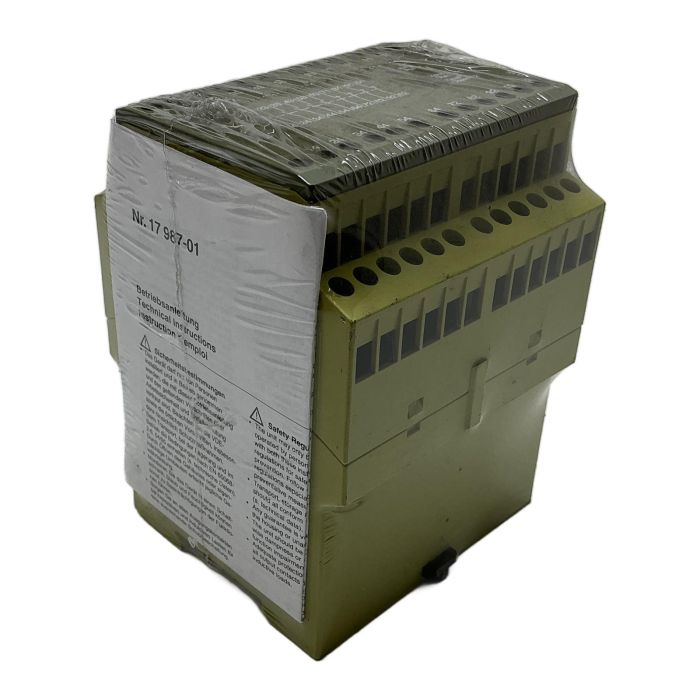

Pilz PNOZ 10 Safety Relay - 774009

Description

The Pilz PNOZ 10 is a safety relay for monitoring safety functions such as E-STOP pushbuttons, safety gates, and light barriers. Part of the proven PNOZclassic series, this unit is known for its reliability and straightforward application. It is designed for DIN rail mounting and features screw terminals for easy installation. This particular model operates on a 24VDC supply voltage.

Specifications

• Manufacturer: Pilz
• Model: PNOZ 10
• ID Number: 774009
• Supply Voltage: 24VDC
• Power Consumption: 5.5 W
• Safety Contacts: 6 Normally Open (N/O)
• Auxiliary Contacts: 4 Normally Closed (N/C)
• Terminal Type: Screw terminals
• Mounting: DIN Rail

Label Info

• AC15 Rating: 230V 5.0A
• DC13 Rating: 24V 7.0A
• Certifications: CE, cULus Listed, TUEV SUED, CCC
• Year of Manufacture: 2014

Application

This safety relay is ideal for implementing fundamental safety functions in automated machinery and industrial plants. Common applications include emergency stop circuits, safety gate monitoring, and use with light curtains or other presence-sensing safety devices.

Country of Origin

This product is Made in France.

CO2 Impact

Opting for a reconditioned component like this Pilz safety relay prevents the emission of approximately 12.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorbed by a mature tree over a year.

Availability

This item is a surplus part and may be obsolete, but it is available from our stock. It provides a direct replacement for existing systems, extending the life of your machinery without costly upgrades. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 6 N/O (Normally Open) contacts are the primary safety outputs that close when the relay is in a safe, energized state; they are used to enable machine operation. The 4 N/C (Normally Closed) contacts are typically used as auxiliary or feedback contacts for monitoring the status of the relay or connected contactors.

The PNOZ 10 is a general-purpose safety relay mainly for E-STOP and safety gate monitoring. For two-hand control applications (Type IIIC to EN 574), specific relays like the Pilz P2HZ series are recommended as they include functionality for simultaneity monitoring.

The PNOZ 10 can be used in applications up to Safety Category 4 according to EN 954-1, Performance Level (PL) e according to EN ISO 13849-1, and Safety Integrity Level (SIL) CL 3 according to EN/IEC 62061. The final level achieved depends on the overall safety circuit design and implementation.
