Description: 773103 (PNOZ m1p ETH): Configurable safety system PNOZmulti base module expandable, communication interface Modbus/TCP, 20 safe., Product Info: Brand Pilz, Series PNOZmulti, Width 135 mm, Height 94 mm, Voltage type supply voltage DC, With display No, Associated asset (Ex ia) No, Front mounting possible No, Associated asset (Ex ib) No, Rack mounting possible No, Wall/direct mounting possible No, Number of digital outputs 4, Suitable for safety function Yes, SIL according to IEC 61508 3, Performance level according to EN ISO 13849-1 Level e, Number of relay outputs 2, Number of HW interfaces industrial ethernet 2, Depth 121 mm, System components Yes, Memory expansion possible No, Memory type EEPROM, Memory size 32 kByte, Number of digital inputs 20, Supply voltage at DC 20.4 - 28.8 V, Suitable for rail mounting Yes, label Info: Made in Germany 0101, pilz, www.pilz.com, PNOZ m1p ETH Ident No.: 773103, CE, HG03033, A1/A2 :24VDC9 28W 04.05: AC :240V/6A, 10 119:24VDC/8mA, TOT3:24VDC/0.5A, 00.03:24VDC/2A, OAO :24VDC/0,5A, Safety mat application, see product documents, DC :24V/6A, tested stety, AC15:230V/3A (CCC, DC13:24V/3A, 6AF/6AT AD10321, 24VDC/6A C, CI CO TO 13 00 030A024V OV 04, 888, UL, CULUS, LISTED, IND.CONT.EQ, 23SF, YOM 2016, 05, 88888 13 14 23 24, Ethernet, 10, Inputs, up, up, HO, Inputs, ☐, ☐, Power, 1718, 119 A1 A2, Termination/Link

• Description: 773103 (PNOZ m1p ETH): Configurable safety system PNOZmulti base module expandable, communication interface Modbus/TCP, 20 safe.
• Product Info:
  • Brand: Pilz
  • Series: PNOZmulti
  • Width: 135 mm
  • Height: 94 mm
  • Voltage type: supply voltage DC
  • With display: No
  • Associated asset (Ex ia): No
  • Front mounting possible: No
  • Associated asset (Ex ib): No
  • Rack mounting possible: No
  • Wall/direct mounting possible: No
  • Number of digital outputs: 4
  • Suitable for safety function: Yes
  • SIL according to IEC 61508: 3
  • Performance level according to EN ISO 13849-1: Level e
  • Number of relay outputs: 2
  • Number of HW interfaces industrial ethernet: 2
  • Depth: 121 mm
  • System components: Yes
  • Memory expansion possible: No
  • Memory type: EEPROM
  • Memory size: 32 kByte
  • Number of digital inputs: 20
  • Supply voltage at DC: 20.4 - 28.8 V
  • Suitable for rail mounting: Yes
• Label Info: Made in Germany 0101, pilz, www.pilz.com, PNOZ m1p ETH Ident No.: 773103, CE, HG03033, A1/A2 :24VDC9 28W 04.05: AC :240V/6A, 10 119:24VDC/8mA, TOT3:24VDC/0.5A, 00.03:24VDC/2A, OAO :24VDC/0,5A, Safety mat application, see product documents, DC :24V/6A, tested stety, AC15:230V/3A (CCC, DC13:24V/3A, 6AF/6AT AD10321, 24VDC/6A C, CI CO TO 13 00 030A024V OV 04, 888, UL, CULUS, LISTED, IND.CONT.EQ, 23SF, YOM 2016, 05, 88888 13 14 23 24, Ethernet, 10, Inputs, up, up, HO, Inputs, ☐, ☐, Power, 1718, 119 A1 A2, Termination/Link

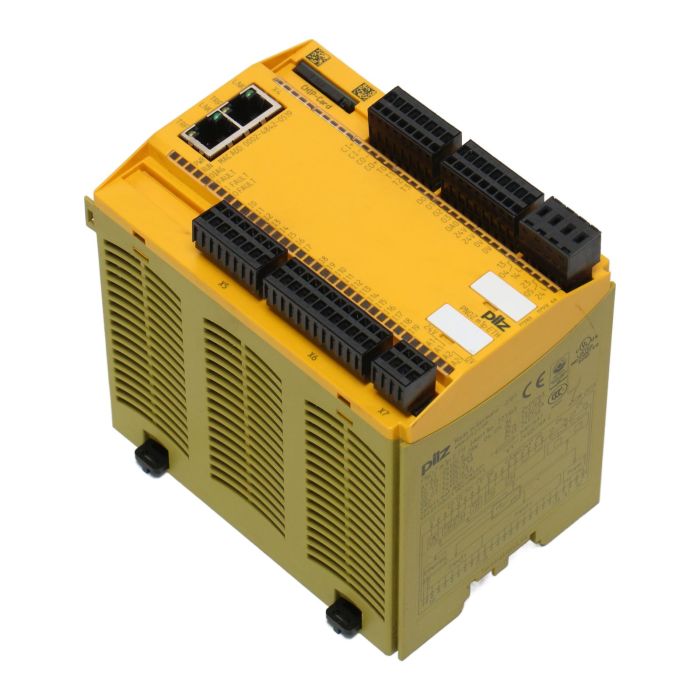

PNOZ m1p ETH Pilz

Manufacturer: Pilz

Item Code: 773103

Available for purchase at PLC2Day

Typical industrial applications include automation, packaging, conveyors, and HVAC systems.
