Phoenix Contact D-SUB Interface Module

Description

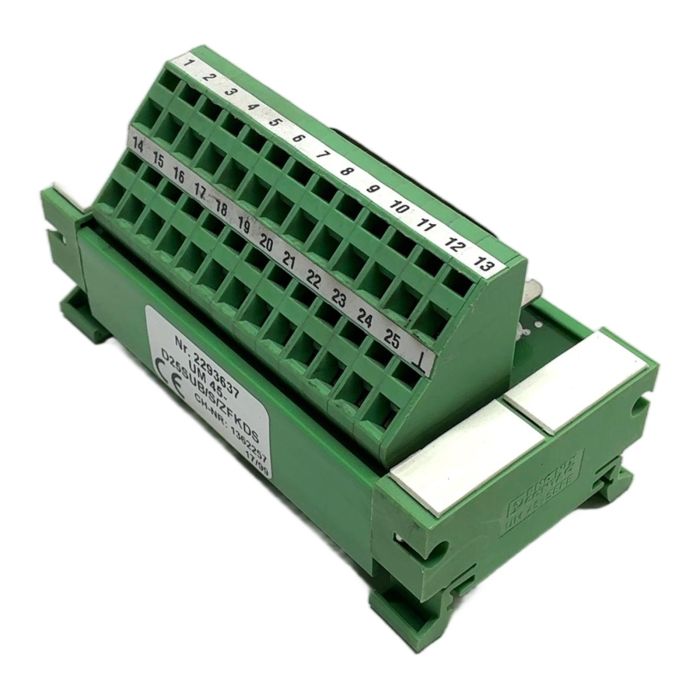

This is a VARIOFACE module, model UM 45-D25SUB/S/ZFKDS, from Phoenix Contact. It features a 25-position D-SUB male pin strip connector that breaks out to screw connection terminals, facilitating easy and secure wiring. The module is designed for mounting on NS 35/7.5 DIN rails.

Specifications

• Manufacturer: Phoenix Contact
• Part Number: 2293637
• Model: UM 45-D25SUB/S/ZFKDS
• Number of positions: 25
• Connector Type: D-SUB 25-pin, male
• Connection Method: Screw connection
• Mounting Type: DIN rail NS 35/7.5
• Max. current per signal path: 2.5 A
• Nominal voltage: 25 V AC, 60 V DC

Label Info

• Nr. 2293637
• UM 45-D25SUB/S/ZFKDS
• CH-NR: 1362257
• Date Code: 17/99 (Week 17, 1999)

Application

Ideal for use in control cabinets for signal conditioning, data acquisition systems, and interfacing between controllers and field devices. It provides a structured and reliable wiring solution.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned module over a new one avoids the emission of approximately 6 kg of CO2, a significant saving for a small component.

Availability

This product is an obsolete item but is available from our stock as a reliable spare part. Perfect for repairs and maintaining existing systems without costly upgrades. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the maximum current per signal path?

The maximum permissible current is 2.5 Amperes per individual signal path.

Yes, it is designed for mounting on standard NS 35/7.5 DIN rails, ensuring easy integration into most industrial enclosures.

The screw terminals are designed to accommodate a wire cross-section from 0.2 mm sq to 4 mm sq (AWG 24 to 12).
