Phoenix Contact 25-Position D-SUB Interface Module

Description

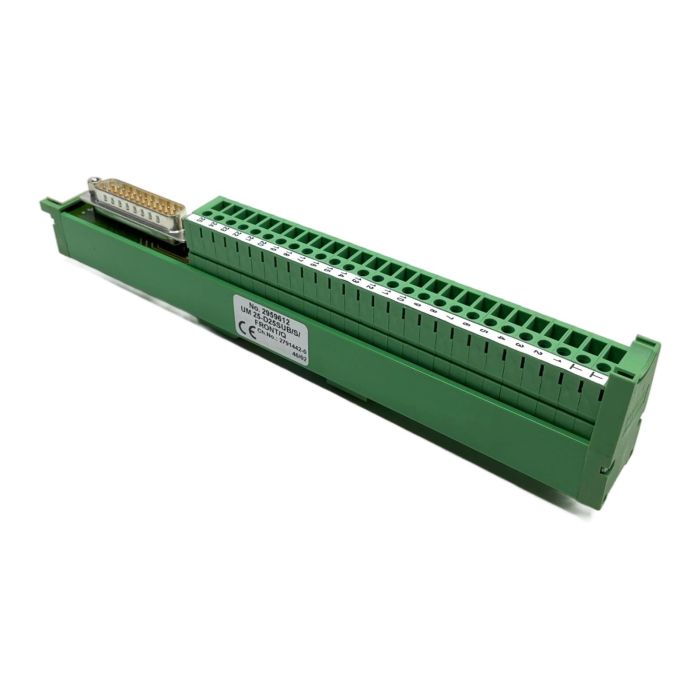

The UM 25-D25SUB/S/FRONT/Q, part number 2959612, is a VARIOFACE interface module from Phoenix Contact. It is engineered to provide a seamless 1:1 connection from a 25-position D-SUB male connector to screw terminals. This DIN rail mountable module is ideal for simplifying I/O wiring in control cabinets, saving installation time and ensuring reliable signal transmission.

Specifications

• Manufacturer: Phoenix Contact
• Type: UM 25-D25SUB/S/FRONT/Q
• Part Number: 2959612
• Number of positions: 25
• Connection 1: D-SUB male connector (25-pin)
• Connection 2: Screw connection terminals
• Nominal Voltage: 125 V AC/DC
• Max. Current per branch: 2.5 A
• Ambient Temperature (operation): -20 deg C to 50 deg C
• Mounting: DIN rail NS 35/7.5

Label Info

• No. 2959612
• UM 25-D25SUB/S/FRONT/Q
• Ch.No.: 2791442-0

Application

This module is perfectly suited for applications in industrial automation, process control, and measurement systems where signals from a D-SUB cable need to be distributed to individual wires. It is commonly used with PLCs, data acquisition cards, and other control equipment.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned component over a new one prevents the emission of approximately 6.0 kg of CO2, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The module is rated for a maximum current of 2.5 A per connection and a nominal voltage of 125 V AC/DC.

The screw terminals are designed to accept wire sizes from 26 to 14 AWG (0.14 mm2 to 2.5 mm2).

Yes, this is a passive module with a 1:1 connection, meaning pin 1 on the D-SUB connector corresponds to terminal 1, pin 2 to terminal 2, and so on.
