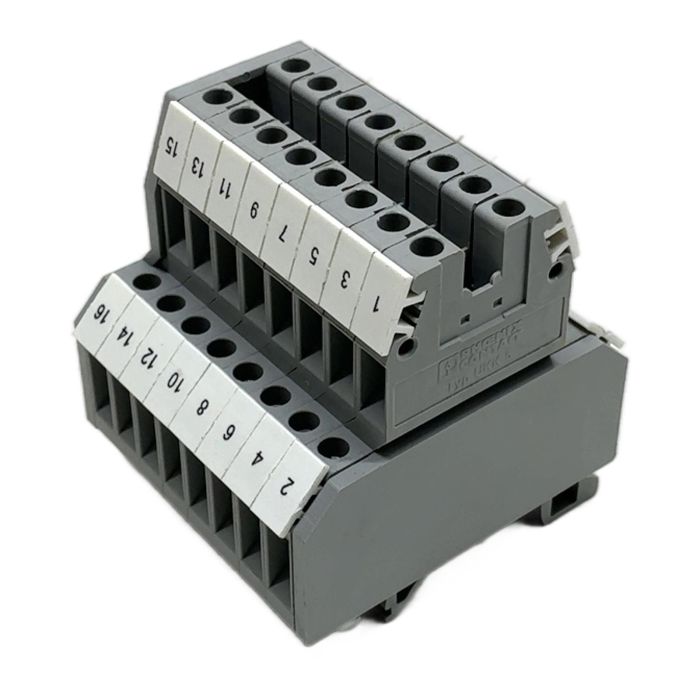

Phoenix Contact UKK 5 Double-Level Terminal Block

Description

The UKK 5 from Phoenix Contact is a compact and reliable double-level terminal block, ideal for high-density wiring in industrial control cabinets. It utilizes a proven screw connection technology to ensure secure and vibration-resistant connections. Part of the CLIPLINE complete system, it offers a universal solution for various applications, saving up to 50% space compared to single-level blocks.

Specifications

• Manufacturer: Phoenix Contact
• Type: UKK 5
• Part Number: 2774017
• Number of Levels: 2
• Connection Method: Screw connection
• Nominal Voltage: 500 V
• Nominal Current: 32 A
• Conductor Cross Section: 0.2 mm2 - 4 mm2 (AWG 24 - 12)
• Mounting Type: DIN rail (NS 35/7,5, NS 35/15, NS 32)
• Material: Polyamide (PA)
• Color: Gray

Label Info

• Brand: PHOENIX CONTACT
• Model: Typ UKK 5

Application

This terminal block is perfectly suited for use in machine building, plant engineering, process technology, and control system panels where space is a premium and reliable electrical connections are critical.

Country of Origin

This product is typically manufactured in Germany.

CO2 Impact

Opting for a reused component like this one helps avoid the CO2 emissions associated with new production. This single block saves an estimated 0.6 kg of CO2, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the recommended screw torque for the UKK 5?

The recommended tightening torque for the clamping screws is between 0.5 and 0.6 Newton-meters to ensure a secure connection without damaging the conductor or terminal.

Yes, the UKK 5 is designed to be used with or without ferrules on stranded wires, accommodating cross-sections up to 2.5 mm2 with ferrules.

Yes, its universal foot is designed for mounting on NS 35/7,5, NS 35/15, and NS 32 DIN rails, offering maximum flexibility in panel design.
