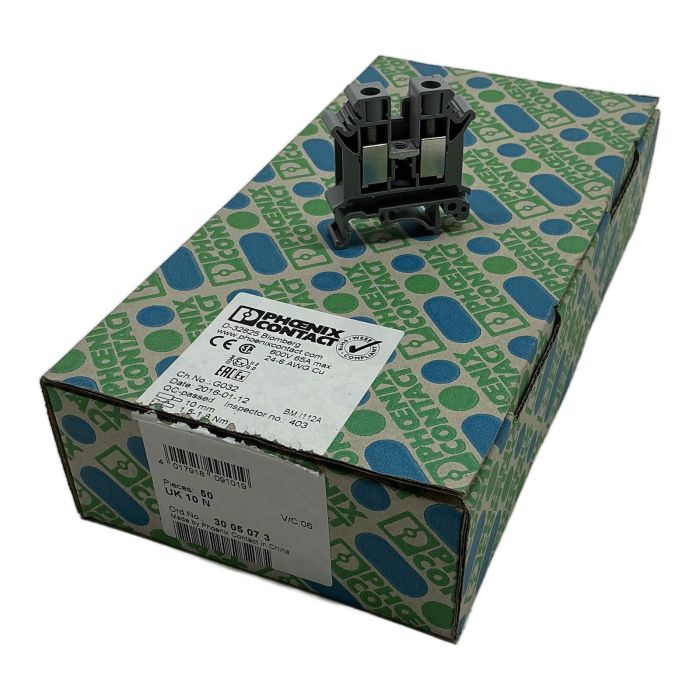

Phoenix Contact UK 10 N Feed-through Terminal Block

Description

The UK 10 N is a robust and reliable feed-through terminal block from Phoenix Contact, part of the acclaimed CLIPLINE complete system. It features a proven screw connection technology, ensuring a secure and vibration-resistant contact for a wide range of conductor cross-sections. Its compact design and universal foot make it ideal for flexible mounting on standard DIN rails (NS 35 and NS 32), suitable for various applications in machine building, control cabinet construction, and process technology.

Specifications

• Manufacturer: Phoenix Contact
• Type: UK 10 N
• Order Number: 3005073
• Connection Method: Screw connection
• Conductor Cross-Section: 0.5 mm2 to 10 mm2
• AWG Range: 24 to 6
• Maximum Current: 65 A
• Maximum Voltage: 600 V
• Color: Gray
• Mounting Type: DIN rail NS 35/7,5, NS 35/15, NS 32

Label Info

• Charge No.: G032
• Date: 2016-01-12
• Stripping Length: 10 mm
• Torque: 1.5-1.8 Nm

Application

This terminal block is universally applicable for connecting and distributing potentials in industrial control cabinets. It is widely used in power distribution, signal wiring, and automation systems where a secure and permanent connection is critical.

Country of Origin

Made by Phoenix Contact in China.

CO2 Impact

Opting for a refurbished component like this UK 10 N terminal block prevents the emission of 0.56 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging a smartphone 67 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

For optimal connection, strip the conductor to a length of 10 mm. It is recommended to use ferrules for stranded conductors to ensure a reliable and long-lasting connection.

Yes, the label indicates EAC Ex and UL approvals, which often include ratings for use in hazardous locations. However, you must always consult the official datasheet and specific Ex certifications for the approved application class and zone.

The screw connection provides an extremely high contact force, making it exceptionally vibration-resistant and suitable for large conductor cross-sections. It is a universally understood and accepted technology, valued for its long-term reliability in harsh industrial environments.
