Phoenix Contact Power Supply Assembly 24V 1A in Rittal Enclosure

Description

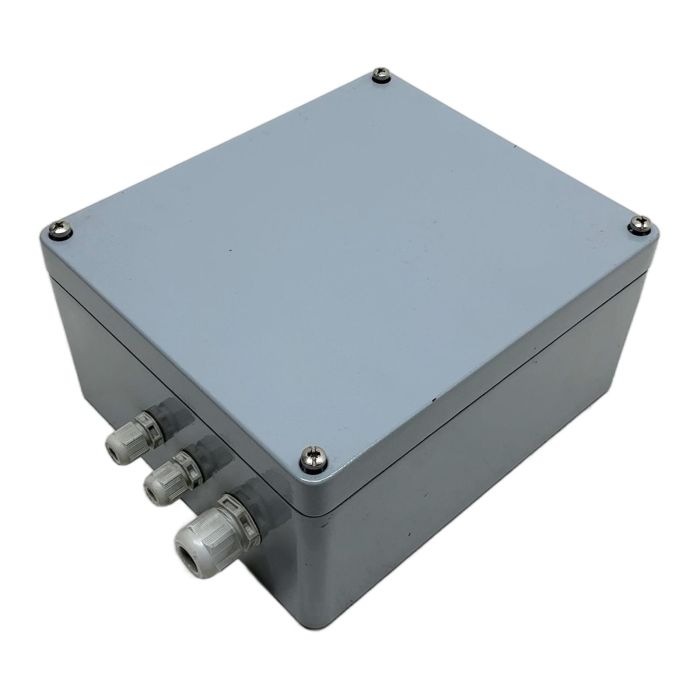

This is a complete power supply solution, featuring the highly reliable Phoenix Contact QUINT PS-230AC/24DC/1 power supply professionally installed in a rugged Rittal GA 9116.210 cast aluminum enclosure. This pre-assembled unit is designed for durability and provides a stable 24 VDC, 1 A output, perfect for powering sensitive electronics in demanding industrial settings. The IP66 rating of the Rittal enclosure ensures protection against dust and powerful water jets.

Specifications

• Power Supply Manufacturer: Phoenix Contact
• Power Supply Model: QUINT PS-230AC/24DC/1
• Order Number: 2939441
• Input Voltage: 230 V AC / 47-63 Hz
• Input Voltage Range: 187 V AC to 264 V AC
• Output Voltage: 24 V DC
• Output Current: 1 A
• Enclosure Manufacturer: Rittal
• Enclosure Model: GA 9116.210
• Enclosure Material: Cast Aluminium
• Enclosure IP Rating: IP66

Label Info

• Phoenix Contact QUINT 1, Ord. No. 29 39 441
• Rittal GA 9116.210, IP 66

Application

Ideal for decentralized power distribution in machine building, process control, and automation systems. Suitable for applications requiring robust protection against environmental factors, such as outdoor installations or wash-down areas.

Country of Origin

Germany

CO2 Impact

By choosing this pre-owned assembly, you are helping to avoid the emission of approximately 36.1 kg of CO2. This is equivalent to the emissions from driving a standard car for about 180 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Phoenix Contact QUINT POWER series is known for its high operational reliability. It features preventive function monitoring and a long power failure buffering time, ensuring maximum system availability even with older models.

Yes, provided the cables installed through the glands are of the correct diameter and the glands are tightened to the manufacturer's specification. The current glands are designed to maintain the IP66 integrity of the enclosure.

Yes, this first-generation QUINT power supply is generally suitable for use in IT systems. However, it is always recommended to consult the official product documentation for specific configuration requirements and limitations.
