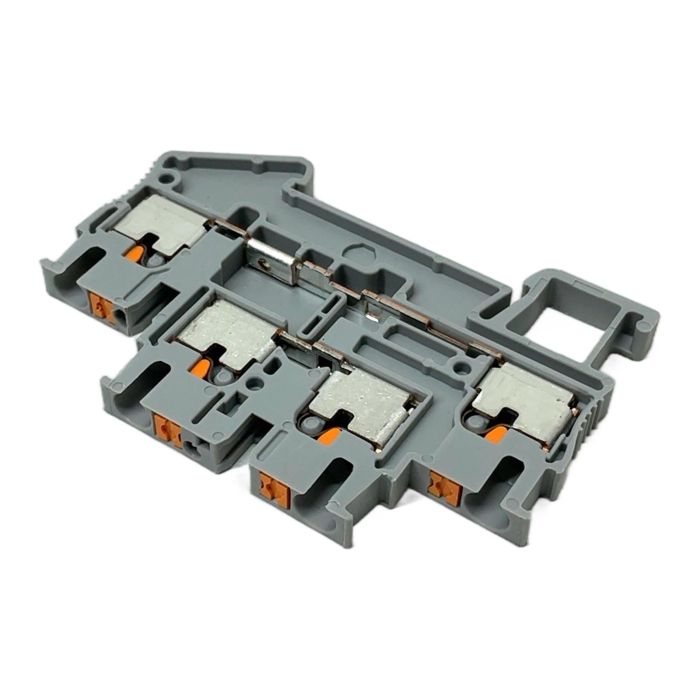

Phoenix Contact PTTB 2,5-PV Double-Level Terminal Block

Description

The PTTB 2,5-PV is a compact, double-level terminal block from Phoenix Contact, designed for high-density wiring and potential distribution. It features tool-free Push-in connection technology for quick and reliable installations. This block is ideal for control cabinets where space is at a premium and efficient wiring is essential.

Specifications

• Manufacturer: Phoenix Contact
• Part Number: 3210884
• Type: PTTB 2,5-PV
• Number of Levels: 2
• Number of Connections: 4
• Connection Method: Push-in connection
• Nominal Voltage: 500 V
• Nominal Current: 22 A
• Conductor Cross-Section: 0.14 mm2 to 4 mm2
• Mounting Type: NS 35/7,5, NS 35/15 DIN rail
• Material: PA 66-FR (Polyamide)

Label Info

• Typ PTTB 2,5 / PTTB 2,5-PV
• IEC 60947-7-1
• 500V 2,5mm2
• Ex eb IIC
• PTB 09 ATEX 1111U
• IECEx PTB 10.0021U

Application

This terminal block is widely used in industrial automation, panel building, and machine manufacturing for signal marshalling and power distribution. Its ATEX and IECEx certifications also make it suitable for use in potentially explosive environments.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused item, you are contributing to a circular economy and have helped avoid approximately 0.4 kg of CO2 emissions associated with the production of a new component.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the main advantage of the Push-in connection technology on this terminal block?
Answer:
The primary advantage is speed and reliability. It allows for the direct, tool-free insertion of solid conductors or conductors with ferrules, reducing wiring time by up to 50% compared to traditional screw terminals. The spring mechanism ensures a secure, vibration-proof connection.

Question?
Can this terminal block be used in explosive atmospheres?
Answer:
Yes. The terminal block is certified according to ATEX (PTB 09 ATEX 1111U) and IECEx (IECEx PTB 10.0021U) standards for 'Ex eb IIC' (increased safety), making it suitable for use in Zone 1 and Zone 2 hazardous areas.

Question?
What type of jumpers or bridges are compatible with the PTTB 2,5-PV?
Answer:
This terminal block is compatible with the standard Phoenix Contact FBS plug-in bridge system. These bridges can be used in the double function shaft to easily cross-connect terminals.
