Phoenix Contact PT 2,5-QUATTRO Terminal Block

Description

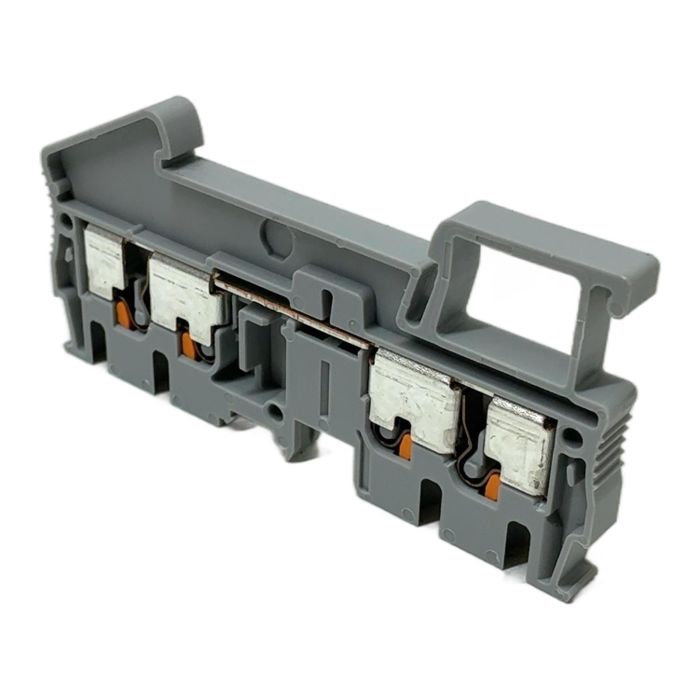

The PT 2,5-QUATTRO is a feed-through terminal block from Phoenix Contact's renowned CLIPLINE complete series. It is designed for DIN rail mounting and features four connections, making it ideal for high-density wiring and potential distribution applications. The tool-free Push-in connection technology allows for fast and secure wiring, saving valuable installation time. This terminal block is suitable for a wide range of conductor cross-sections and is built to withstand demanding industrial environments.

Specifications

• Manufacturer: Phoenix Contact
• Type: PT 2,5-QUATTRO
• Part Number: 3209578
• Connection Method: Push-in connection
• Number of Connections: 4
• Nominal Voltage: 800 V
• Nominal Current: 24 A
• Conductor Cross-section: 0.14 mm2 to 4 mm2 (AWG 26 - 12)
• Width: 5.2 mm
• Color: Gray
• Mounting Type: DIN rail (NS 35/7,5, NS 35/15)

Label Info

• Typ: PT 2,5-QUATTRO
• Standard: IEC 60947-7-1
• Rating: 800V 2.5mm2
• ATEX Certification: PTB 09 ATEX 1111U
• IECEx Certification: IECEx PTB 10.0021U

Application

This terminal block is widely used in industrial automation, control panel building, machine manufacturing, and process control systems for reliable signal and power distribution.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this refurbished component, you are contributing to a circular economy and avoiding 0.28 kg of CO2 emissions. That's equivalent to the CO2 absorbed by a small tree in over a month.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This terminal block accepts wire cross-sections from 0.14 mm2 to 4 mm2, which corresponds to an AWG range of 26 to 12. Both solid and stranded conductors (with ferrules) can be used.

For solid conductors or stranded conductors with ferrules, no tool is required; you simply push the wire in. To release a wire, a standard screwdriver is used to press the orange actuator.

Yes, the PT 2,5-QUATTRO holds both ATEX (PTB 09 ATEX 1111U) and IECEx (IECEx PTB 10.0021U) certifications, making it suitable for use in potentially explosive atmospheres (Ex e applications).
