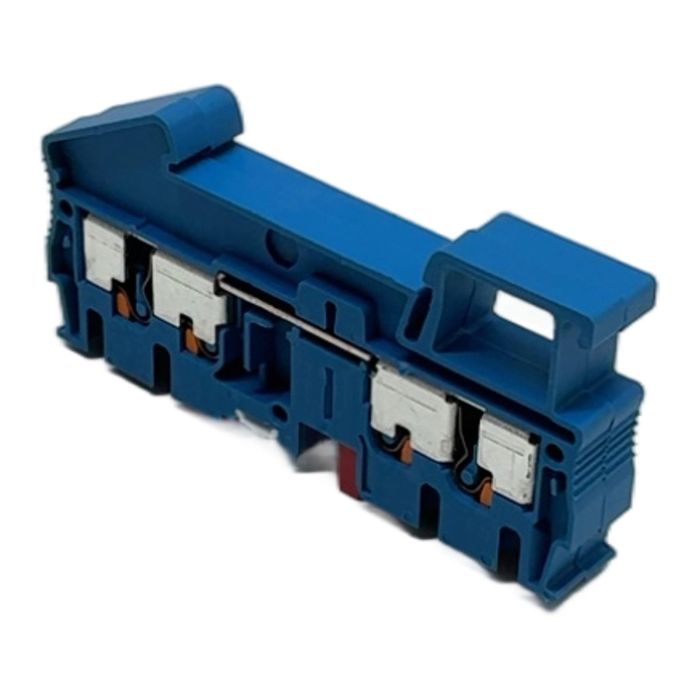

Phoenix Contact PT 2,5-QUATTRO Push-in Terminal Block

Description

The PT 2,5-QUATTRO from Phoenix Contact is a high-quality, 4-conductor feed-through terminal block designed for industrial control cabinets. It utilizes Push-in connection technology, allowing for fast, easy, and tool-free wiring of solid and ferruled conductors. Its compact design saves space on the DIN rail, while the blue color is ideal for identifying neutral conductors. This block is also ATEX certified for use in potentially explosive environments.

Specifications

• Manufacturer: Phoenix Contact
• Type: PT 2,5-QUATTRO
• Article Number: 3209578
• Connection Method: Push-in connection
• Number of Connections: 4
• Nominal Voltage (IEC): 800 V
• Nominal Current (IEC): 24 A
• Conductor Cross Section: 0.14 mm2 - 4 mm2
• Mounting Type: DIN rail (NS 35)
• Color: Blue

Label Info

• Standard: IEC 60947-7-1
• ATEX Certification: PTB 09 ATEX 1111 U
• IECEx Certification: IECEx PTB 10.0021U

Application

Ideal for use in machine building, plant engineering, and process technology control cabinets. Its robust design and ATEX certification make it suitable for demanding industrial and hazardous environments.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to reduce industrial waste and prevent the emission of approximately 0.3 kg of CO2 associated with the production of a new unit. This saving is equivalent to charging a smartphone 36 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The primary advantage is the speed and ease of installation. It allows for direct, tool-free insertion of solid conductors or conductors with ferrules, reducing wiring time by up to 50 percent compared to screw connections. The integrated spring ensures a secure, vibration-proof connection.

Yes, this terminal block is certified under 'PTB 09 ATEX 1111 U' and rated for 'Ex eb IIC'. This means it is suitable for use in equipment intended for explosive atmospheres with an increased safety protection level.

In many regions and applications, the blue color is used to designate terminal blocks for neutral (N) conductors, as per standards like IEC 60445. It can also be used for wiring in intrinsically safe (Ex i) circuits, ensuring clear and safe identification within a control panel.
