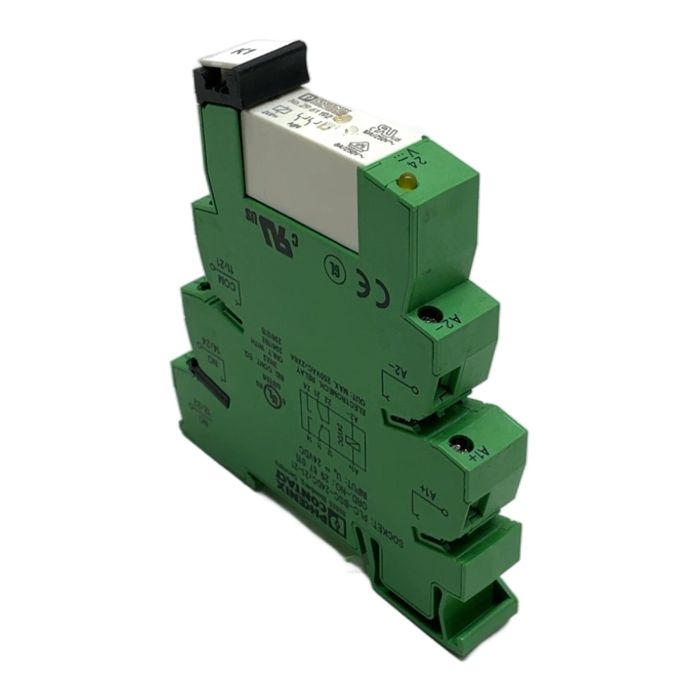

Phoenix Contact PLC-BSC-24DC/21-21 Relay Module

Description

The PLC-BSC-24DC/21-21 is a high-quality relay module from Phoenix Contact's PLC-INTERFACE series. It consists of a basic terminal block with screw connection and a pluggable miniature relay. This module is engineered for universal use in control cabinets, providing reliable galvanic isolation and power amplification. Its slim design saves valuable space on the DIN rail.

Specifications

• Manufacturer: Phoenix Contact
• Model (Socket): PLC-BSC-24DC/21-21
• Order Number (Socket): 29 67 015
• Input Voltage: 24V DC
• Contact Type: 2 Changeover Contacts (DPDT)
• Contact Material: AgNi
• Maximum Switching Voltage: 250V AC/DC
• Maximum Continuous Current: 6 A
• Connection Method: Screw connection
• Mounting: DIN Rail

Label Info

• Socket: PLC-BSC-24DC/21-21, Ord.-No.: 29 67 015
• Relay: No. 29 61 192, 24V DC, 6A/250V

Application

Ideal for use as an interface between a programmable logic controller (PLC) and field actuators or sensors. It is commonly used in industrial automation, process control, and machine building for signal switching, voltage level conversion, and signal amplification.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned module, you contribute to the circular economy and prevent the emission of approximately 1.5 kg of CO2 that would be required for the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
Can the plug-in relay (part no. 2961192) be replaced separately from the base?

Answer

Yes, this is a key feature of the PLC-INTERFACE series. The miniature relay can be unplugged from the PLC-BSC base and replaced individually, which simplifies maintenance and reduces costs.

Question?
What is the difference between the PLC-BSC and PLC-RSC series from Phoenix Contact?

Answer

The PLC-BSC series refers to the 'Basic' terminal block/base, while the PLC-RSC series typically denotes the complete pre-assembled 'Relay' module (base + relay). This unit consists of a PLC-BSC base with a compatible relay installed.

Question?
What type of screwdriver is needed for the screw terminals on this module?

Answer

The PLC-BSC-24DC/21-21 uses standard screw terminals. A small flat-head or slotted screwdriver with a blade width of approximately 2.5mm to 3.5mm is recommended for secure wire termination.
