Phoenix Contact Potentiometer Module

Description

The EMG 30-SP-10K LIN from Phoenix Contact is a high-quality setpoint potentiometer module designed for precise manual control in industrial automation applications. Housed in a compact EMG 30 enclosure, this module is ideal for DIN rail mounting inside control cabinets. It provides a simple and reliable method for operators to input analog setpoints, such as speed, temperature, or position, into a control system. Its robust design ensures long-term stability and performance in demanding environments. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Phoenix Contact
• Model: EMG 30-SP-10K LIN
• Part Number: 2942124
• Resistance: 10 kOhm
• Characteristic: Linear (LIN)
• Max. Operating Voltage: 30V AC/DC
• Power Rating: 0.5 W
• Mounting: NS 35/7.5, NS 35/15, NS 32 DIN rail
• Connection: Screw terminals

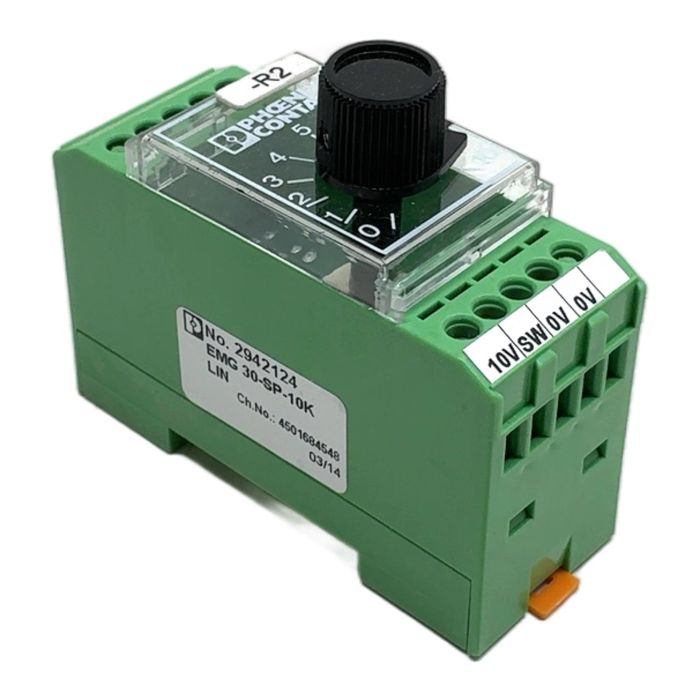

Label Info

• No: 2942124
• EMG 30-SP-10K
• LIN
• Ch.No.: 4501684548
• Date Code: 03/14

Application

This potentiometer module is commonly used for generating analog setpoint signals (e.g., 0-10V) for frequency inverters, PLC analog inputs, valve controllers, and other devices requiring a manually adjustable control signal.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this refurbished component, you are saving approximately 3.0 kg of CO2, which is comparable to the emissions from a 15 km car journey.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The 'SW' terminal is the wiper (or slider) of the potentiometer. As you turn the knob, the resistance between the 10V terminal and SW, and between SW and the 0V terminal, changes. This provides a variable voltage output at the SW terminal, which is used as the setpoint signal for a controller or drive.

No, the EMG 30-SP-10K is a passive potentiometer module. It can be used as part of a circuit to control a current signal (e.g., as an input to a PLC analog input card or a signal converter that generates the 0-20 mA), but it does not generate the current signal by itself. It simply provides a variable resistance.

Phoenix Contact specifies a high mechanical endurance for their potentiometers, typically rated for thousands of rotational cycles. Electrically, its lifespan depends on the applied voltage and current, but as it's designed for low-power signal applications (max 30V, max 0.5W), it offers very long operational life when used within its specified limits.
