Pepperl+Fuchs M12 Y-Splitter V1S-T-V3

Description

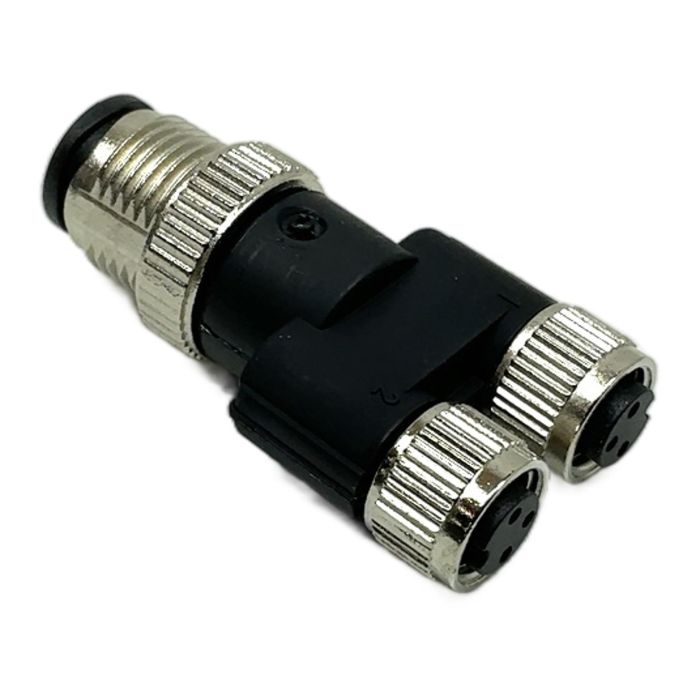

The V1S-T-V3 is a robust Y-distributor from Pepperl+Fuchs, designed for reliable signal and power distribution in industrial automation environments. This component allows a single M12 connection to be split into two parallel outputs, simplifying wiring for sensors and actuators. Its high protection rating ensures dependable operation even in harsh conditions.

Specifications

• Model: V1S-T-V3
• Part Number: 221645
• Type: Y-Splitter / Y-Distributor
• Connector 1: M12 Male Plug, 4-pin, A-coded
• Connector 2 & 3: M12 Female Socket, 5-pin, A-coded (Pin 5 not connected)
• Rated Voltage: max. 250 V AC/DC
• Rated Current: max. 4 A per contact
• Protection Rating: IP67 / IP68 / IP69
• Housing Material: TPU, Black
• Coupling Nut: Die-cast zinc, nickel-plated

Label Info

• Manufacturer: PEPPERL+FUCHS
• Type: V1S-T-V3
• Part No.: 221645

Application

This Y-splitter is ideal for applications requiring the duplication of sensor signals or the parallel connection of multiple actuators to a single I/O port. It is commonly used in conveyor systems, packaging machinery, and general machine building.

Country of Origin

Made in Poland.

CO2 Impact

By choosing this reused component, you are avoiding the production of a new one, saving an estimated 0.8 kg of CO2. This is comparable to the energy needed to fully charge a smartphone 96 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This is a common design for compatibility. The V1S-T-V3 uses a standard 4-pin M12 A-coded pinout (pins 1-4) which are wired in parallel to the corresponding pins on both 5-pin female sockets. Pin 5 on the female sockets is not connected, ensuring it can be used with both 4-pin and 5-pin cables without any issue, as long as pin 5 is not required by the connected device.

The V1S-T-V3 has an IP67, IP68, and IP69 rating when properly mated. This means it is fully protected against dust ingress, can be submerged in water, and can withstand high-pressure, high-temperature washdowns. It is ideal for harsh industrial environments, including food and beverage processing and machine tools.

No, this splitter is not suitable for Industrial Ethernet protocols. It is an A-coded connector for standard sensor/actuator signals. Industrial Ethernet requires specific D-coded or X-coded M12 connectors with appropriate shielding to ensure data integrity at high speeds.
