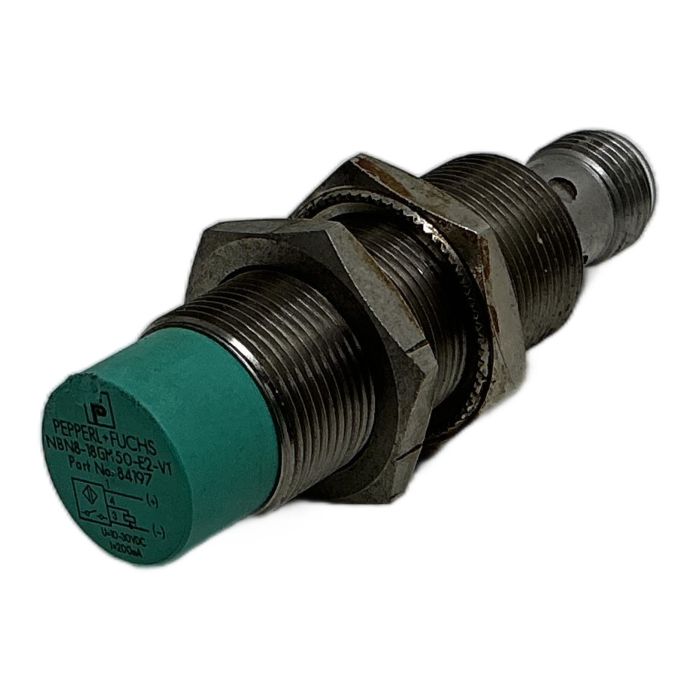

Pepperl+Fuchs Inductive Proximity Sensor NBN8-18GM50-E2-V1

Description

This is a standard inductive sensor from Pepperl+Fuchs, model NBN8-18GM50-E2-V1. It is designed for reliable and non-contact detection of metallic objects in a wide range of industrial automation and machinery applications. Its robust M18 nickel-plated brass housing ensures durability in harsh environments.

Specifications

• Model: NBN8-18GM50-E2-V1
• Part Number: 84197
• Sensing Distance: 8 mm
• Mounting: Flush
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10 to 30 V DC
• Switching Current: 0 to 200 mA
• Housing: M18 x 1 Threaded Barrel, Brass nickel-plated
• Connection: 4-pin M12 connector

Label Info

• Manufacturer: PEPPERL+FUCHS
• Type: NBN8-18GM50-E2-V1
• Part No: 84197
• Voltage: U=10-30VDC
• Current: I<=200mA

Application

Ideal for position sensing, object detection, and counting tasks on conveyor systems, assembly lines, packaging machinery, and machine tools.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this refurbished component, you help avoid approximately 2.4 kg of CO2 emissions compared to buying a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A flush mountable sensor, like this NBN8 model, can be installed so its sensing face is level with the surrounding metal mounting surface without affecting its performance. A non-flush (or non-embeddable) sensor requires a metal-free zone around its sensing face and typically offers a longer sensing range for the same size.

The 'E2' in the Pepperl+Fuchs naming convention specifies the output type. In this case, it indicates a 3-wire DC, PNP, Normally Open (NO) output configuration.

You can perform a simple bench test by connecting it to a compatible 10-30V DC power supply. Connect the positive lead to pin 1 (BN) and the negative lead to pin 3 (BU). The output is on pin 4 (BK). Use a multimeter to measure the voltage between the output pin and the negative lead. When a metal target is brought within the 8mm sensing range, the output voltage should switch to the supply voltage level.
