Description / PEPPERL+FUCHS ICE1-8IOL-G60L-V1D 295313
Pepperl+Fuchs 8-Port IO-Link Master Module
Description

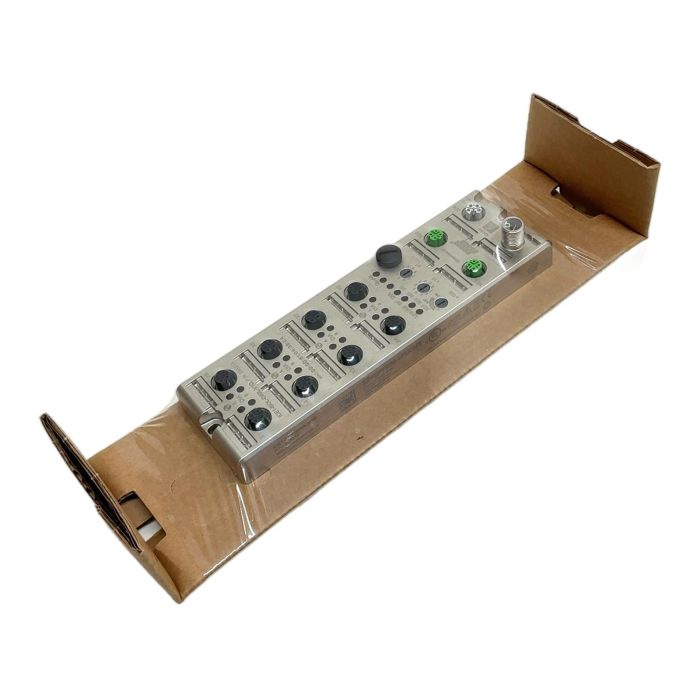

The ICE1-8IOL-G60L-V1D from Pepperl+Fuchs is a high-performance Ethernet IO module with an integrated 8-port IO-Link master. This device acts as a gateway between intelligent IO-Link sensors/actuators and higher-level control systems using PROFINET or EtherNet/IP. Its rugged diecast zinc housing and IP67/IP69 rating ensure reliable operation in demanding industrial settings. The module simplifies wiring and enables advanced diagnostics and parameterization, making it ideal for modern factory automation. Order now from PLC2Day for expert support and fast delivery.
Specifications
- Manufacturer: Pepperl+Fuchs
- Type: ICE1-8IOL-G60L-V1D
- Part Number: 295313
- Communication Protocol: PROFINET, EtherNet/IP (auto-sensing)
- Number of IO-Link Ports: 8 (Class A)
- Connections: M12
- Power Supply: 24V DC via L-coded M12
- Bus Interface: 2 x D-coded M12 for Ethernet
- Protection Rating: IP67 / IP69
- Housing Material: Diecast zinc, nickel-plated
Label Info
- Type: ICE1-8IOL-G60L-V1D
- Part No.: 295313
- Ser. No.: F10016
Application
This IO-Link master is perfectly suited for applications in machine building, automotive manufacturing, and material handling where decentralized I/O architecture is required. It efficiently connects a variety of sensors, valve terminals, and actuators to the control network.
Country of Origin
Made in Germany.
CO2 Impact
Choosing this pre-owned module over a new one avoids the emission of approximately 19.6 kg of CO2, contributing to a more sustainable industrial environment. This saving is equivalent to the emissions from driving a car for 98 kilometers.
Availability
This item is in stock and ready for immediate dispatch.
FAQ
Question? Can this module be used with both PROFINET and EtherNet/IP simultaneously?
Answer
No, the module operates in one of the two modes, PROFINET or EtherNet/IP. The protocol is automatically detected upon startup based on the communication partner, simplifying integration. Question? What is the purpose of the L-coded M12 power connector?Answer
The L-coded M12 power connector is designed for higher current applications, providing up to 16 A. This allows a single power connection to supply the module's electronics and the connected sensors and actuators, reducing wiring complexity. Question? Is it possible to configure the IO-Link ports for standard digital I/O (SIO mode)?Answer
Yes, each of the 8 IO-Link ports can be individually configured to operate either in IO-Link mode or as a standard digital input/output (SIO mode). This provides excellent flexibility for connecting both intelligent IO-Link devices and simple digital sensors or actuators.PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
