Parker Hydraulic Straight Connector 16mm to 1/2 inch NPT GE16S1/2NPTCFX

Description

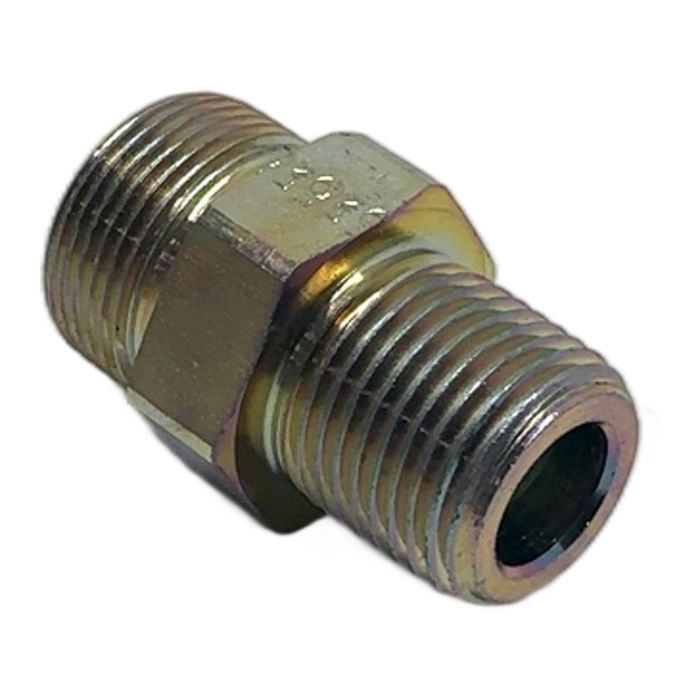

This is a genuine Parker Ermeto Original (EO) straight male stud coupling, part number GE16S1/2NPTCFX. It is designed to create a reliable and high-pressure connection in hydraulic systems. This fitting adapts a 16mm outer diameter tube with a 24-degree cone end to a 1/2 inch NPT male threaded port. Its robust steel construction with a zinc-plated, chromium-VI free finish ensures durability and corrosion resistance.

Specifications

• Manufacturer: Parker Hannifin
• Series: Ermeto Original (EO)
• Part Number: GE16S1/2NPTCFX
• Type: Straight Male Stud Coupling
• Connection 1: For 16mm Tube O.D. (24 deg Cone End)
• Connection 2: 1/2 inch NPT Male Thread
• Series Type: S (Heavy)
• Material: Steel, zinc-plated, Cr(VI)-free

Application

This fitting is widely used in various hydraulic applications, including industrial machinery, construction equipment, agricultural vehicles, and general fluid power systems requiring a secure connection between metric tubing and NPT-threaded components.

Country of Origin

This product is made in Poland.

CO2 Impact

Opting for this reused component prevents the emission of approximately 0.27 kg of CO2 compared to manufacturing a new one. This choice supports sustainable practices by reducing industrial waste and energy consumption.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the maximum working pressure for this GE16S1/2NPTCFX fitting?

This fitting belongs to the Parker Ermeto S (heavy) series. The maximum working pressure is determined by the tube and other system components, but for a 16mm S-series fitting, the nominal pressure rating is typically up to 420 bar (6090 PSI), assuming proper assembly and compatible tubing.

Is this fitting compatible with stainless steel tubing?

While the fitting is made of zinc-plated carbon steel, it can be used with stainless steel tubing. However, for optimal corrosion resistance and to prevent galvanic corrosion, especially in harsh environments, it is best practice to use stainless steel fittings with stainless steel tubing.

What does the 'CFX' suffix in the part number signify?

The 'CFX' suffix in Parker part numbers indicates the material and surface treatment. 'CF' stands for carbon steel with a zinc-plated, Chromium-VI free surface finish, which provides good corrosion protection. The 'X' is an internal Parker designator that can relate to specific manufacturing or sealing updates.
