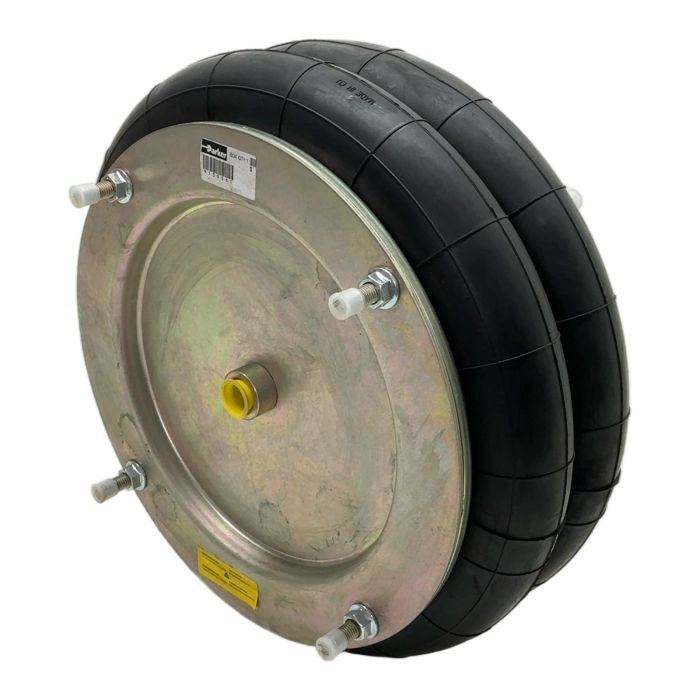

Parker 9109061 Pneumatic Double Convoluted Air Spring

Description

The Parker 9109061 is a high-performance double convoluted air spring designed for industrial actuation and vibration isolation. This component provides a high force output with a compact installation height, making it ideal for applications such as vehicle suspension, industrial machinery lifts, and paper mill equipment. Its robust construction with reinforced rubber and steel end plates ensures durability and a long, maintenance-free service life.

Specifications

• Manufacturer: Parker
• Part Number: 9109061
• Type: Double Convoluted Air Spring
• Bellow Size: 14 1/2 x 2 Inch
• Max Operating Pressure: Refer to manufacturer datasheet
• Operating Temperature: Refer to manufacturer datasheet
• Material: Steel end plates, reinforced rubber bellow

Label Info

• Brand: Parker
• P/N: 9109061
• Date: 02/01/19

Application

This air spring is suitable for a wide range of industrial applications, including but not limited to, lifting platforms, tensioning devices, vibration isolators for machinery, and actuators in conveyor systems. Its ability to absorb shock and isolate vibration makes it critical for protecting sensitive equipment and ensuring smooth operation.

Country of Origin

This product is typically manufactured in Italy.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid approximately 24 kg of CO2 emissions, which is comparable to driving a car for 120 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the maximum recommended operating pressure for the Parker 9109061?

Answer: The maximum operating pressure is typically around 7 bar (100 psi), but it is crucial to consult the official Parker technical datasheet for this specific model to ensure safe operation within your application's parameters.

Can this air spring be new with media other than compressed air, such as nitrogen or water?

Answer: These air springs are designed primarily for use with clean, dry compressed air or nitrogen. Using liquids like water or oil is not recommended as it can degrade the rubber materials and internal components, leading to premature failure.

What are the thread sizes for the mounting studs and the central air inlet port?

Answer: While specifications can vary, models of this size often feature 3/8-16 UNC mounting studs and a 1/4 NPTF or 3/4 NPTF air inlet. It is essential to verify these dimensions against the product datasheet or measure them directly before installation.
